Switching Power Supply SMPS - 12V, 10A, 120W
$7.5000
In stock
SKU
BAT-04-007
Volume discounts:
- +25 5 % $7.1100
- +50 8 % $6.9100
- +100 10 % $6.7200
- +300 13 % $6.5200
- +500 16 % $6.3200
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Switching Power Supply SMPS - 12V, 20A, 240W Previous

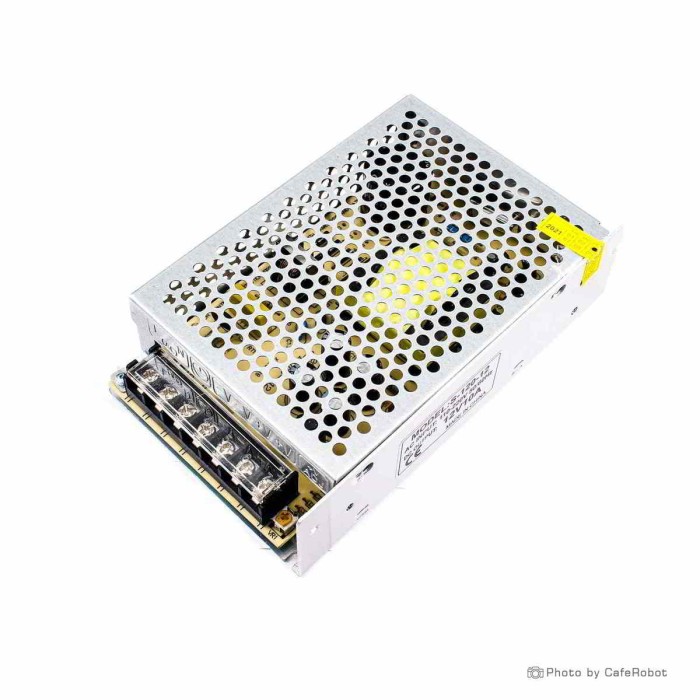

Switching Power Supply SMPS is an industrial metal power supply designed for AC to DC conversion. It provides a 12V DC output with a 10A maximum output current and a 120W maximum output power. The unit supports 110/220V AC input and 60/50Hz frequency. It includes short circuit, overvoltage, and overload protection. The metal body and industrial standard design make it suitable for electronics and automation power applications.
Features of Switching Power Supply SMPS - 12V, 10A, 120W
- 12V DC output
- 10A maximum output current
- 120W maximum output power
- 110/220V AC input
- Short circuit protection
- Overvoltage protection
- Overload protection
- Metal body
Specifications of Switching Power Supply SMPS - 12V, 10A, 120W
- Maximum output power: 120W
- Output voltage: 12V DC
- Maximum output current: 10A DC
- Input voltage: 110/220V AC
- Frequency: 60/50Hz
- Protection: short circuit, over voltage, overload
- Dimensions: 50x114x215 mm
- Body material: metal
- Weight: 460 grams
- Protection: short circuit / overload / over voltage
- Input voltage and frequency range: 85 ~ 264VAC/47 ~ 63Hz
- Inrush current: 20A @ 120VAC (cold start)
- Output adjustment range: ± 10% (rated output voltage)
- Overload: 105% to 200% (rated load), since the resumption of
- Over voltage: 115% ~ 135% (rated output voltage)
- Short circuit protection: recovery
- Output start time: ≤ 2S @ 120VAC ≤ 1.0S @ 230VAC
- Output hold time: ≥ 10mS @ 120VAC, ≥ 20mS @ 230VAC
- Dielectric strength: Input - Output: AC1500V, 1min
- Dielectric strength: Input - Chassis: AC1500V, 1min
- Dielectric strength: Output - Chassis: DC500V, 1min
- Work environment: 10 „ ~ 50 „; 20% ~ 90% RH (non-condensing)
- Package include: 1x 12V 10A Switching Power
How to Use Switching Power Supply SMPS - 12V, 10A, 120W
- Connect the AC input within the supported input range.
- Connect the DC output to the intended load.
- Confirm the output matches the required 12V DC setup.
More Info
- Industrial standard design
- Metal enclosure
- Suitable as a voltage regulator
| Weight (g) | 460 |
|---|
