Switching Power Supply SMPS - 12V, 20A, 240W
$9.5000
In stock
SKU
BAT-04-008
Volume discounts:
- +25 5 % $9.0500
- +50 7 % $8.8300
- +100 9 % $8.6000
- +300 12 % $8.3800
- +500 14 % $8.1500
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Switching Power Supply SMPS - 12V, 5A, 60W Previous

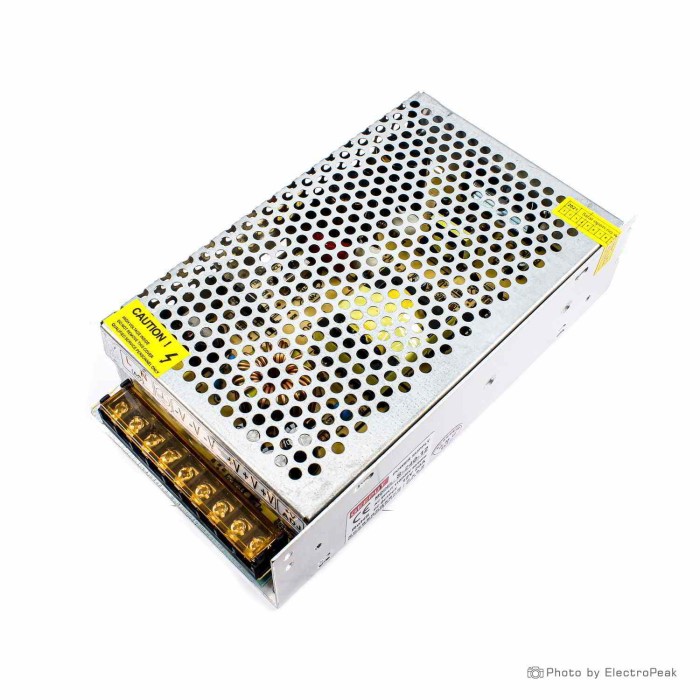

Switching Power Supply SMPS is a metal-cased industrial power supply with a 12V DC output. It delivers up to 20A and 240W for stable DC power delivery. The unit accepts 110/220V AC input and supports a 95-125V / 190-250V input range. It operates at 60/50Hz and includes short circuit, overvoltage, and overload protection. This power supply is designed for industrial use and includes multiple operating and build details for installation planning.
Features of Switching Power Supply SMPS - 12V, 20A, 240W
- 12V DC output
- 20A maximum output current
- 240W maximum output power
- 110/220V AC input
- Short circuit protection
- Overvoltage protection
- Overload protection
- Metal body
Specifications of Switching Power Supply SMPS - 12V, 20A, 240W
- Maximum output power: 240W
- Output voltage: 12V DC (adjustable up to 15%)
- Maximum output current: 20A DC
- Input voltage: 110/220V AC in the range 95-125V / 190-250V
- Frequency: 60/50Hz
- Short circuit protection
- Overvoltage protection
- Overload protection
- Dimensions: 50x110x200 mm
- Working temperature: -10 to 60°C
- Body material: metal
- Weight: 650 g
- Safety compliance: CCC / FCC / CE
- Input: AC110V / 240V
- Output: DC 12V 20A
- Output power: 240W
- Frequency: 50 / 60Hz
- Number of terminals a screw: 9
- Mounting screw hole diameter: 2.5mm (0.1 inch)
- Working temperature: -40 ~ 65 degrees Celsius
- Storage temperature: -20°C ~ 60°C
- Humidity: 20% ~ 90% RH non-condensing
- Material: metal, electronic parts
- Main color: Silver
- Cooling by free air convection
- 100% burn-in test at full load
- For internal use only
- IP20 is not waterproof
How to Use Switching Power Supply SMPS - 12V, 20A, 240W
- Connect the unit to the specified AC input range.
- Wire the 12V DC output to the load terminals.
- Ensure the installation stays within the rated current and power limits.
More Info
- Industrial power supply for DC conversion
- Suitable for internal use only
- IP20 protection is not waterproof
| Weight (g) | 650 |
|---|
