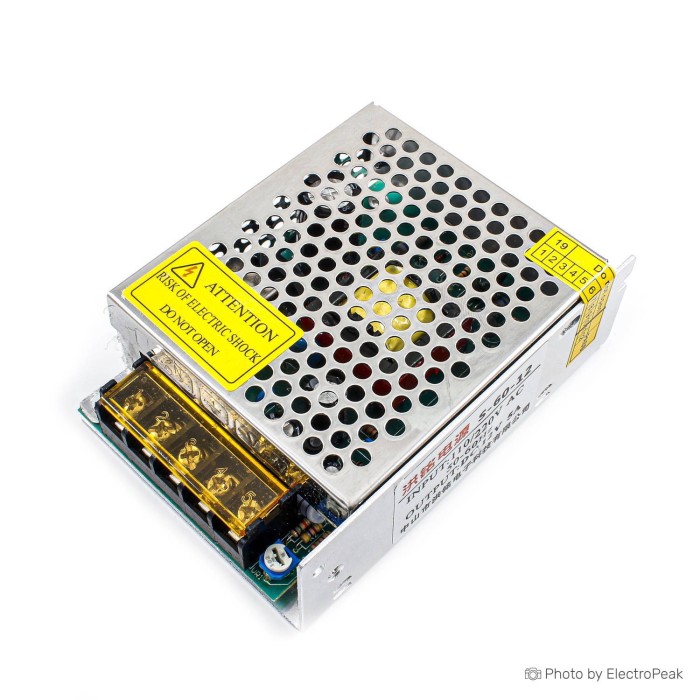

Switching Power Supply SMPS - 12V, 5A, 60W
$5.2500
In stock
SKU
BAT-04-010
Volume discounts:
- +25 6 % $4.9400
- +50 9 % $4.7900
- +100 12 % $4.6300
- +300 15 % $4.4800
- +500 18 % $4.3200
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Switching Power Supply SMPS - 24V, 15A, 360W Previous
Switching Power Supply SMPS is a metal industrial power supply for 12V DC output applications. It converts AC input into DC output and is presented as an industrial-standard unit with suitable reliability. The supply provides 12V DC output with a 5A maximum output current. It includes short circuit protection, overvoltage protection, and overload protection. The housing is metal, and the unit is designed for general power supply use in electronics and industrial setups.
Features of Switching Power Supply SMPS - 12V, 5A, 60W
- 12V DC output
- 5A maximum output current
- Short circuit protection
- Overvoltage protection
- Overload protection
- Metal housing
- Industrial standard design
Specifications of Switching Power Supply SMPS - 12V, 5A, 60W
- Maximum output power: 50W
- Output voltage: 12V DC
- Maximum output current: 5A DC
- Input voltage: 110/220V AC
- Frequency: 60/50 Hz
- Input voltage: AC88V-264V
- Input frequency: 47 ~ 63Hz
- Input start-up inrush current: Cold start 5A / 115V, 30A / 230V
- Output voltage adjustment range: +10%
- Output voltage: 12 V
- Output rated current: 5A
- Output current range: 0 ~ 5A
- Size: 110 x 78 x 36 mm
- Size: 35.8x73x110 mm
- Rise time: 50ms (typical) at full load
- Hold time: 20ms (typical) at full load
- Working environment: -20 °C ~ +55 °C, 20% ~ 93% RH (no silver frost)
- Storage environment: -40 °C to +85 °C, 10% to 95% RH
- Cooling method: Air natural convection cooling
- Operating temperature: 0 to 40+ °C
- Body material: Metal
How to Use Switching Power Supply SMPS - 12V, 5A, 60W
- Connect the AC input to the power supply.
- Use the 12V DC output for the intended load.
- Check the output current and power requirements before operation.
More Info
- Package includes 1x 12V 5A Power Supply.
- The unit is described as an industrial power supply.
