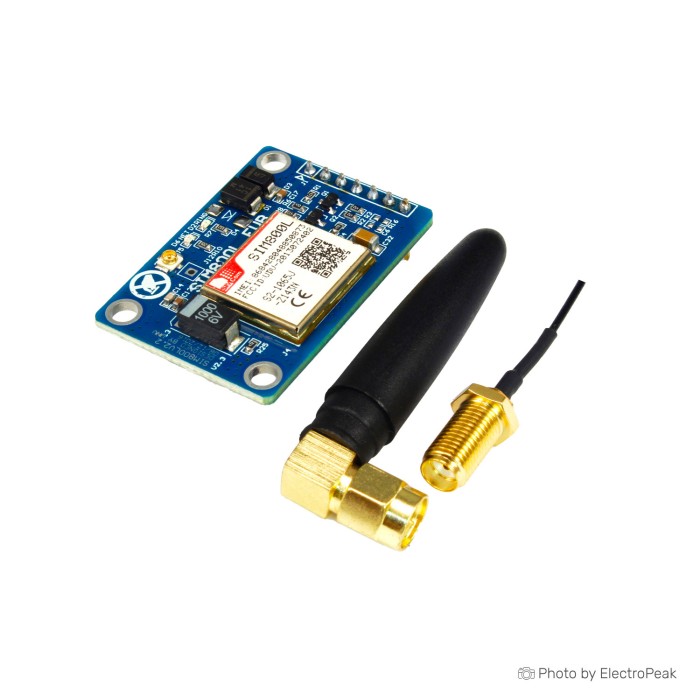

SIM800L Wireless Quad-Band Module (GSM/SMS/GPRS)
$4.5900
In stock
SKU
COM-08-011
Volume discounts:
- +25 4 % $4.4000
- +100 6 % $4.3100
- +300 8 % $4.2200
- +500 10 % $4.1300
- +1000 12 % $4.0300
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
SIM800A Wireless Module (GSM/GPRS/SMS) Previous
The SIM800L Wireless Quad-Band Module is designed for GSM, SMS, and GPRS communication projects. It provides a compact option for telecommunication and Internet of Things applications. The module supports wireless data exchange through TCP/UDP communication. It also includes an onboard LED status indicator for easy monitoring.
Features of SIM800L Wireless Quad-Band Module - GSM/SMS/GPRS
- Quad-band network support
- GSM, SMS, and GPRS functionality
- TTL serial interface
- Arduino compatibility
- Onboard LED status indicator
Specifications of SIM800L Wireless Quad-Band Module - GSM/SMS/GPRS
- Model: SIM800L
- Input Voltage: 5V DC
- Operating Current: 1-2.5A
- TTL Serial Interface: Compatible with 3.3V and 5V microcontrollers
- Antenna Interface: ASMA, IPX
- Audio Interface: 3.5mm
- Power Interface: 2.54mm header pin
- Operating Temperature: -40°C to +85°C
- Baud Rate: 2400-115200
- Network Support: 850/900/1800/1900 MHz
- Status Signal: LED status indicator on the board
- Communication Protocol: TCP/UDP
- Compatibility: Compatible with Arduino
- Dimensions: 15.8×17.8×2.4mm
- Weight: 1.35g
How to Use SIM800L Wireless Quad-Band Module - GSM/SMS/GPRS
- Connect the power interface to a 5V DC supply.
- Wire the TTL serial interface to a compatible microcontroller.
- Connect the antenna interface and use the board as needed for communication tasks.
More Info
- Small form factor for compact designs.
- Suitable for GSM, SMS, and GPRS-based projects.
| Platform | Arduino Uno |
|---|---|
| Interface Type | UART |
| Operating Voltage (V) | 5V |
| Operating Current (mA) | 1-2.5A |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 15.8 x 17.8 x 2.4 mm |
| Mounting Type | THT (Through Hole) |
| Connector | IPEX |
| Wireless Protocol | GSM/GPRS/4G |
| Frequency Band | 850/900/1800/1900 MHz |
| Data transmission rate | 2400-115200 bps |
| RF Modulation | GMSK |
| SIM Slots | 1 |
| Weight (g) | 1.35 |
| Chipset | SIM800L |
| Modes | GPRS, SMS, GSM |
| Input Voltage (V) | 5V DC |
| Antenna Type | External IPEX/IPX |
| Application | Internet of Things (IoT) |
