RXB61 433MHz Wireless Receiver Module
$0.7500
In stock
SKU
COM-09-076
Volume discounts:
- +50 4 % $0.7200
- +100 7 % $0.7000
- +300 8 % $0.6900
- +500 11 % $0.6700
- +1000 12 % $0.6600
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
RXB61 315MHz Wireless Receiver Module Previous

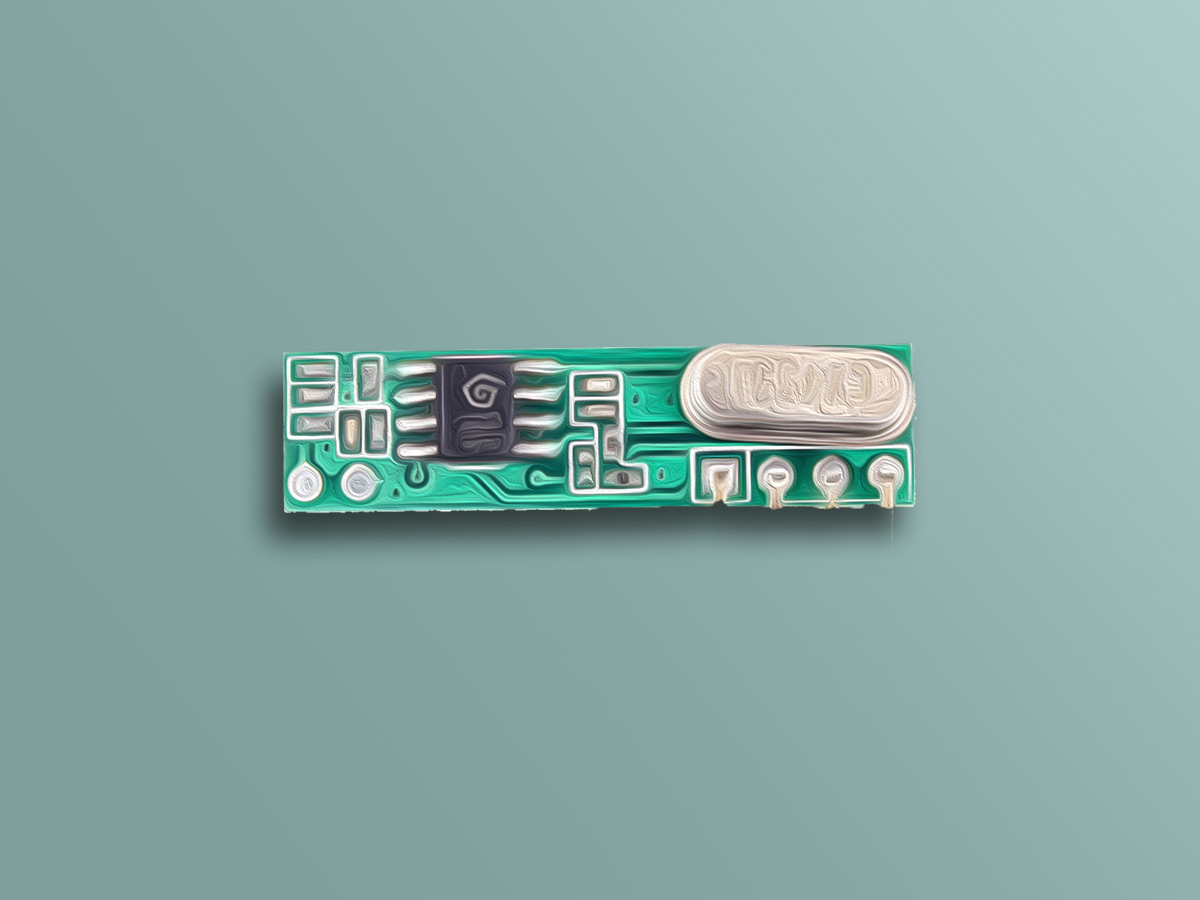

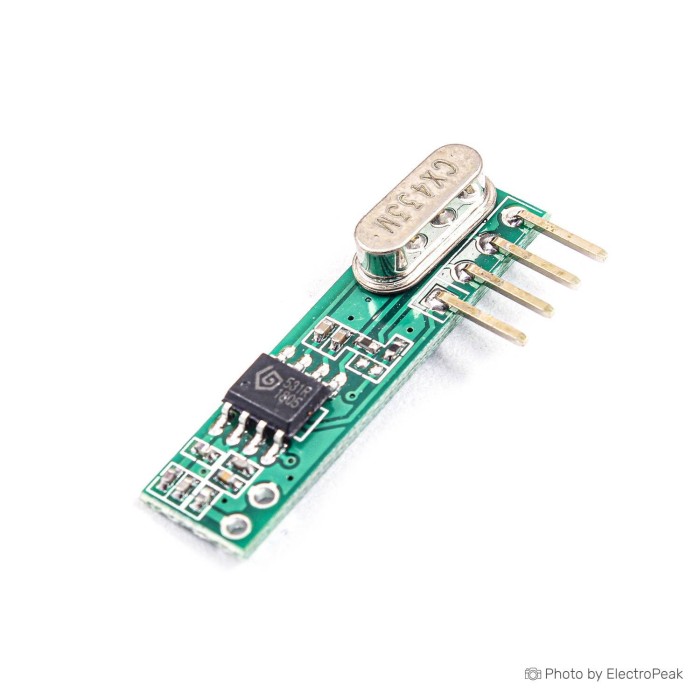

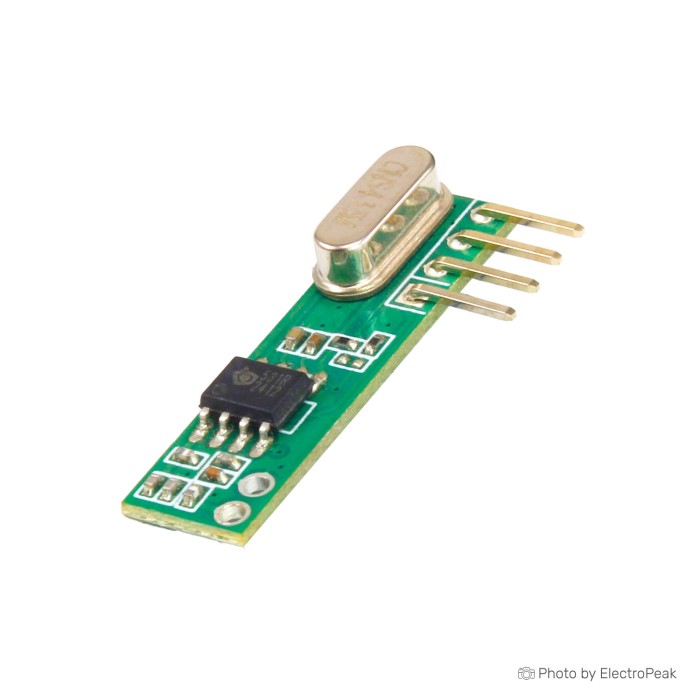

RXB61 433MHz Wireless Receiver Module is a compact RF receiver module for wireless data transfer. It operates in the 433 MHz band and uses ASK modulation. The module is designed for stable receiving performance and high sensitivity. A simple decoder circuit is needed for use. It is suitable for wireless electronics and robotics projects that require 433 MHz reception.
Features of RXB61 433MHz Wireless Receiver Module
- 433 MHz operation
- ASK modulation
- High receiving sensitivity
- Stable frequency performance
- Low RF output
- Compact size
Specifications of RXB61 433MHz Wireless Receiver Module
- Model: RXB61
- Frequency: 433 MHz
- Modulation: ASK
- Sensitivity: -115 dBm
- Operating temperature: -30 to +85 degrees Celsius
- Voltage: 3.5-5.5V DC
- Compatible with most ASK/OOK transmitters
- Operating current: 5 mA
- Low RF emissions
- Size: 30.5 x 7.5 x 5 mm
How to Use RXB61 433MHz Wireless Receiver Module
- Connect the module to a simple decoder circuit.
- Use it with a compatible 433 MHz wireless setup.
- Configure your wireless project for data reception.
More Info
- Wireless receiver module for 433 MHz applications.
- Suitable for wireless data transmission projects.
| Operating Voltage (V) | 3.5-5.5V DC |
|---|---|
| Operating Current (mA) | 5 mA |
| Operating Temp (°C) | -30 to +85 °C |
| Dimensions (mm) | 30.5 x 7.5 x 5 mm |
| Mounting Type | THT |
| Frequency Band | 433MHz |
| RF Modulation | ASK |
| Chipset | RXB61 |
| Application | remote control, Wireless data transmission, Door switches, Wireless industrial control, Wireless security alarm |
| Receiver Sensitivity | -115dBm |
