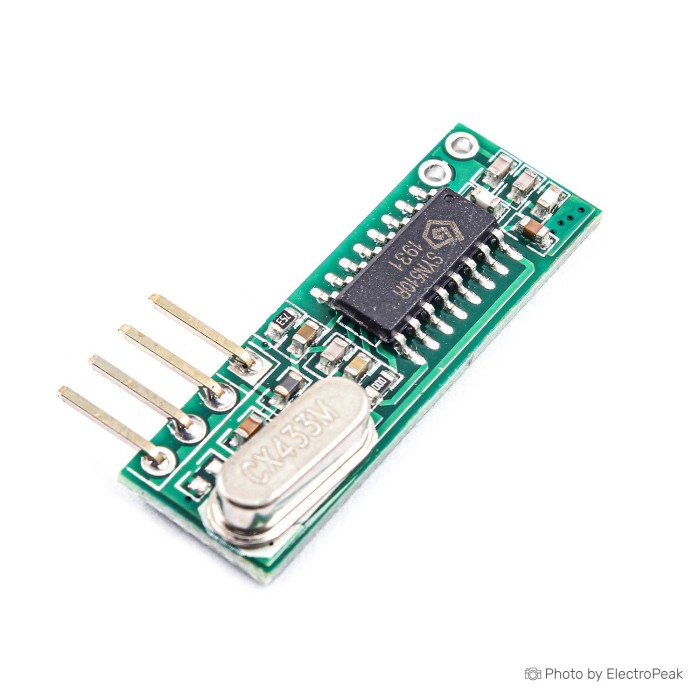

RXB35 433MHz Wireless Receiver Module
$1.2500
In stock
SKU
COM-09-075
Volume discounts:
- +50 4 % $1.2000
- +100 6 % $1.1700
- +300 8 % $1.1500
- +500 10 % $1.1200
- +1000 12 % $1.1000
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
RXB61 433MHz Wireless Receiver Module Previous
RXB35 433MHz Wireless Receiver Module is a wireless RF receiver module for data signal reception in wireless products. It operates at 433MHz and uses ASK modulation. The module is designed for stable frequency and high sensitivity, with low RF radiation. Its output data ports can be connected directly to a microcontroller I/O port or a wireless decoder chip data signal input. RXB35 is suitable for wireless product development and production workflows.
Features of RXB35 433MHz Wireless Receiver Module
- 433MHz operation
- ASK modulation
- High sensitivity
- Stable frequency
- Low RF radiation
- Direct data output
Specifications of RXB35 433MHz Wireless Receiver Module
- Frequency: 433MHz
- Modulation: ASK
- Sensitivity: -115dBm
- Operating temperature: -20 to 70 degrees Celsius
- Voltage: 4.5-5.5V DC
- Compatible with most transmitters (ASK/OOK)
- Working current: 5mA
- Low RF waves
How to Use RXB35 433MHz Wireless Receiver Module
- Connect the output data ports to a microcontroller I/O port or wireless decoder chip input.
- Apply a DC supply within the specified voltage range.
- Use the module for wireless data signal reception.
More Info
- Designed for wireless receiver applications.
- Supports wireless product development and production.
| Interface Type | Digital |
|---|---|
| Operating Voltage (V) | 4.5-5.5V DC |
| Operating Current (mA) | 5 mA |
| Operating Temp (°C) | -20 to 70 °C |
| Mounting Type | THT |
| Connector | Pin Header |
| Frequency Band | 433MHz |
| RF Modulation | ASK |
| SIM Slots | 0 |
| Chipset | RXB35 |
| Input Voltage (V) | 4.5-5.5V |
| Application | Remote control toys, Security alarm, Smart home remote control, Wireless doorbell, Wireless switch |
| Receiver Sensitivity | -115dBm |
