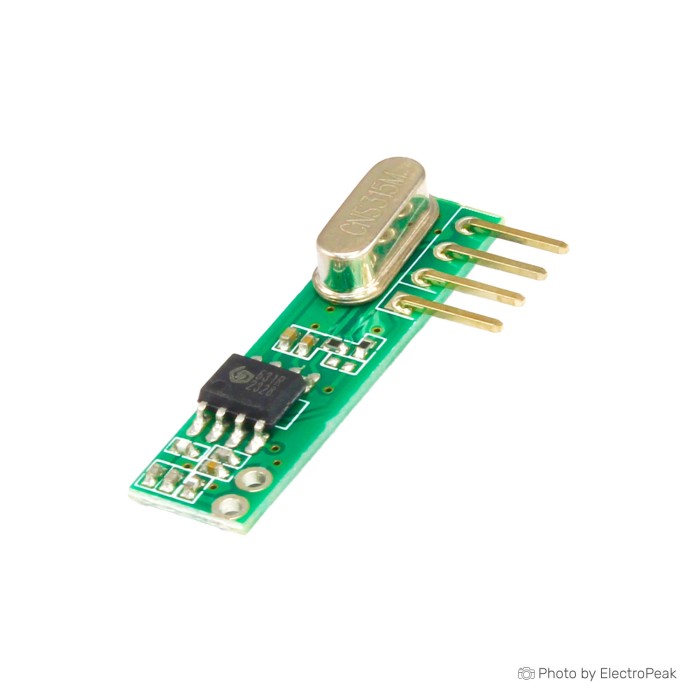

RXB61 315MHz Wireless Receiver Module
$0.7500
In stock
SKU
COM-09-077
Volume discounts:
- +50 4 % $0.7200
- +100 7 % $0.7000
- +300 8 % $0.6900
- +500 11 % $0.6700
- +1000 12 % $0.6600
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
TX5823 5.8GHz 8-Channel FPV Wireless Audio Video Transmitter Module Previous
RXB61 315MHz Wireless Receiver Module is a wireless receiver module for radio-frequency data transfer. It operates at 315 MHz and uses ASK modulation. The module is designed with high sensitivity and stable frequency performance. It features a small size and a reasonable price. A simple data decoder circuit is enough to use this receiver in wireless product development.
Features of RXB61 315MHz Wireless Receiver Module
- 315 MHz operation
- ASK modulation
- High receiving sensitivity
- Stable frequency performance
- Small-size design
- Simple decoder circuit requirement
Specifications of RXB61 315MHz Wireless Receiver Module
- Model: RXB61
- Frequency: 315 MHz
- Modulation: ASK
- Sensitivity: -115 dBm
- Operating temperature: -30 to 85 °C
- Voltage: 3.5-5.5 V DC
- Compatible with most transmitters (ASK/OOK)
- Operating current: 5 mA
- Very low RF waves
- Size: 30.5x7.5x5 mm
How to Use RXB61 315MHz Wireless Receiver Module
- Connect the module to a suitable circuit.
- Use a simple data decoder circuit with the receiver.
- Pair it with compatible ASK/OOK transmitters as needed.
More Info
- Wireless receiver module for RF communication
- Suitable for wireless data transfer projects
| Interface Type | Digital |
|---|---|
| Operating Voltage (V) | 3.5-5.5V DC |
| Operating Current (mA) | 5 mA |
| Operating Temp (°C) | -30 to 85 |
| Dimensions (mm) | 30.5 x 7.5 x 5 mm |
| Mounting Type | THT |
| Frequency Band | 315MHz |
| Data transmission rate | Up to 10kbps |
| RF Modulation | ASK |
| TX Power (dBm) | No |
| Chipset | RXB61 |
| Gain (dBi) | -115dBm |
| Input Voltage (V) | 3.5V-5.5V |
| Application | remote control, Wireless data transmission, Wireless industrial control, Wireless security alarm, Door switch |
