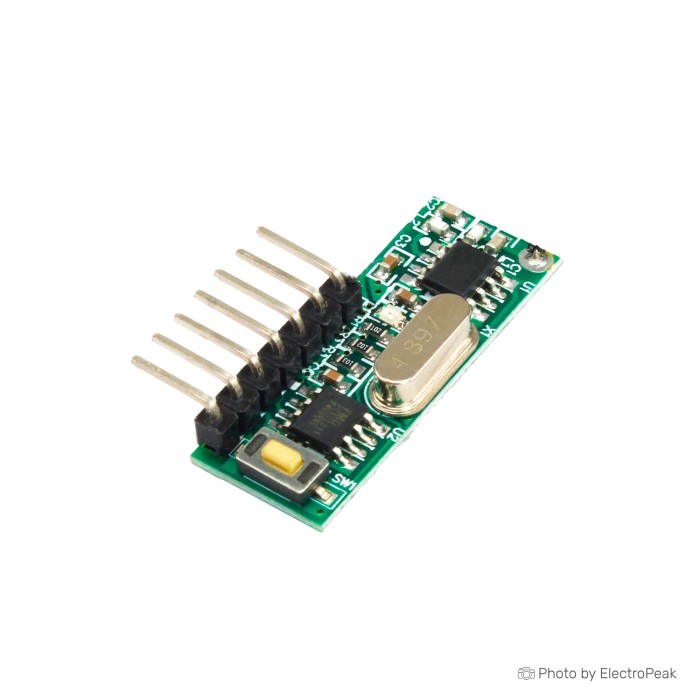

RX480-E4 Wireless Receiver Module with Learning 4 Channel Decoding
SAVE
As low as $1.2500
In stock
Only %1 left
SKU
COM-06-030
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
DRX1K Wireless Remote Control Receiver Module with Code Learning Previous
The RX480-E4 Wireless Receiver Module is a compact and efficient solution for remote control applications. Operating at 433MHz or 315MHz, this module supports a working voltage of 2.5V-5V with a low current consumption of just 3mA. The module is designed for reliable and sensitive reception, with a sensitivity of -108dBm and a maximum data rate of 10KB/s. It features four output channels, each corresponding to a button on the remote control, and supports multiple working modes including point movement, self-locking, and interlocking, making it highly versatile for various wireless applications.
Specifications of RX480-E4 Wireless Receiver Module with Learning 4 Channel Decoding
-
Model: RX480E-4
-
Working Voltage: DC 2.5V-5V
-
Working Current: 3mA
-
Sensitivity: -108dBm
-
Rate: Max 10KB/s
-
Working Mode: Point movement, self-locking, interlocking
-
Output: 4-channel CMOS level signal corresponding to remote control ABCD 4 buttons
-
Frequency Options: 433MHz, 315MHz
-
Dimensions: 28x12x5mm
Datasheet of RX480-E4 Wireless Receiver Module with Learning 4 Channel Decoding
Datasheet: Not available
| Platform | Arduino Mega, Arduino Uno, Arduino Nano, Raspberry Pi 3, Raspberry Pi 4, Raspberry Pi 5 |
|---|---|
| Interface Type | Digital, Wireless |
| Operating Voltage (V) | 3.3V, 5V |
| Operating Current (mA) | 3mA |
| Dimensions (mm) | 28x12x5mm |
| Mounting Type | THT |
| Connector | Pin Header |
| Frequency Band | 433MHz, 315MHz |
| Data transmission rate | 10KB/s |
| Encryption | None |
| TX Power (dBm) | No |
| SIM Slots | 0 |
| Chipset | RX480E-4 |
| Modes | Interlocking, Self-locking, Point movement |
| Input Voltage (V) | 2.5V-5V |
