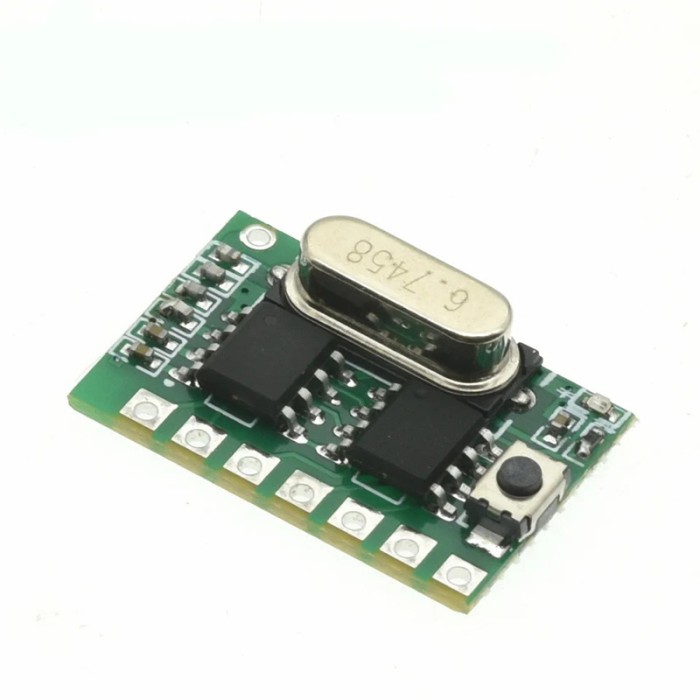

TYJM01 Wireless Remote Control Receiver Module With Decoder

The TYJM01 Wireless Remote Control Receiver Module with Decoder is a compact and versatile RF (Radio Frequency) module designed for remote control applications. It integrates a decoder that allows it to receive signals from compatible wireless remote controls and decode them into actionable commands for connected devices. This module is suitable for various wireless control systems, including home automation, remote keyless entry, and industrial applications requiring reliable wireless communication.

Specifications of TYJM01 Wireless Remote Control Receiver Module With Decoder

• Power: 2.5-5V
• Output: 4-way IO port (high and low level)
• Types of the output logic: 3-types , advance, self-locking, interlocking. Corresponding to different frequencies, a total of 6 options,
• PCB Panel Thickness: 0.8mm
• Size: thickness 4.8 *length 21 * width 13mm

How to use TYJM01 Wireless Remote Control Receiver Module With Decoder

• Regarding Pairing: Hold the small switch on the receiving board for 2 seconds. Release it to activate the small red light. Immediately press any key on the remote control; the small red light will respond, indicating successful pairing.
• Regarding Resetting: Hold the small switch on the receiving board for 10 seconds to clear all stored remote controls.
• Regarding Voltage: The device operates normally with DC 2.5-5V.

Mode selection of TYJM01 Wireless Remote Control Receiver Module With Decoder

• Jog mode selection: Press and hold the learning button for two seconds, release it, and press it quickly again. After releasing it, the
  learning light will flash once in response.
• Latch mode selection: Press and hold the learning button for two seconds, release it, and press it quickly 2 times again. After releasing, the
  learning light will flash 2 times in response.
• Interlock: Press and hold the learning button for two seconds, release it, and press it quickly 3 times again. After releasing, the learning
  light will flash 3 times in response, indicating that the current mode 3 mode
