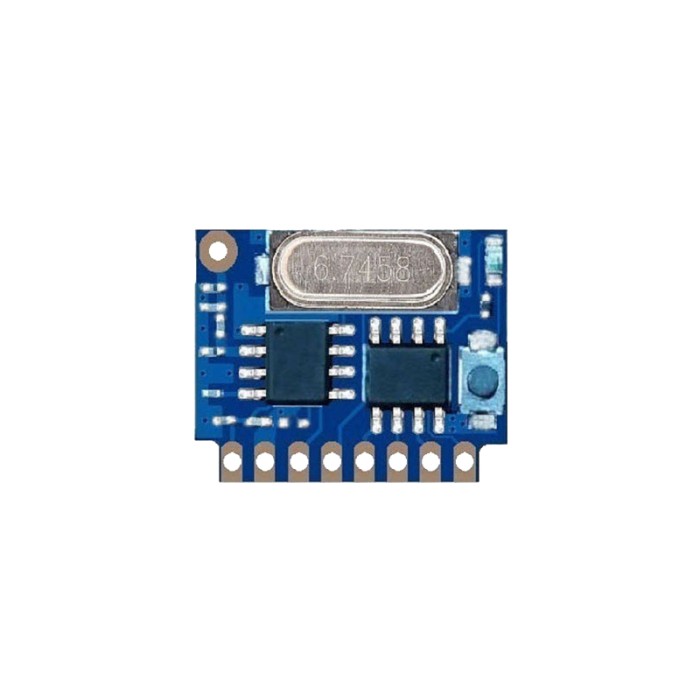

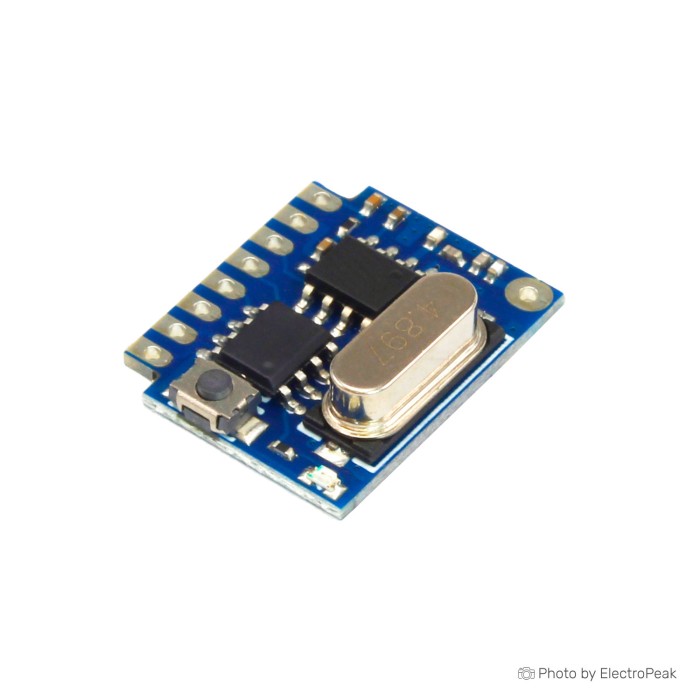

DRX1K Wireless Remote Control Receiver Module with Code Learning
$0.6500
In stock
SKU
COM-06-031
Volume discounts:
- +50 3 % $0.6300
- +100 6 % $0.6100
- +300 8 % $0.6000
- +500 9 % $0.5900
- +1000 11 % $0.5800
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
RXC6 Wireless Receiving Module with Decoding- 4-way Output Previous
The DRX1K Wireless Remote Control Receiver Module with Code Learning is a versatile, high-sensitivity receiver designed to support 433MHz or 315MHz frequencies. It automatically decodes signals from various wireless chips such as 2262, 2260, 2264, and EV1527, making it compatible with a wide range of remote controls. This module can learn and store up to 10 remote control codes and offers robust performance in harsh environments. It features adjustable working modes and retains learned codes even after power-off.
Specifications of DRX1K Wireless Remote Control Receiver Module with Code Learning
-
Operating Frequency: 315MHz / 433.92MHz
-
Operating Voltage: 2.2V - 5.0V
-
Operating Current: 4.8mA (315MHz), 6.5mA (433.92MHz)
-
Receiving Sensitivity: -112dBm @ 315MHz / -112dBm @ 433MHz
-
Modulation Mode: ASK/OOK
-
Transmission Rate: Maximum 10kbps (recommended below 2.5kbps)
-
Antenna Impedance: 50Ω
-
Dimensions: 15.5x19x5.1mm (LxWxH)
-
Operating Temperature: -20°C to +80°C
Datasheet of DRX1K Wireless Remote Control Receiver Module with Code Learning
| Interface Type | Digital |
|---|---|
| Operating Voltage (V) | 2.2V - 5.0V |
| Operating Current (mA) | 4.8mA (315MHz), 6.5mA (433.92MHz) |
| Operating Temp (°C) | -20°C to +80°C |
| Dimensions (mm) | 15.5x19x5.1mm |
| Mounting Type | THT |
| Connector | Pin Header |
| Wireless Protocol | RF (Radio Frequency) |
| Frequency Band | 315MHz / 433.92MHz |
| Data transmission rate | Maximum 10kbps (recommended below 2.5kbps) |
| Encryption | None |
| RF Modulation | ASK |
| SIM Slots | 0 |
| Chipset | 2262, 2260, 2264, EV1527 |
| Modes | Interlock, Jog, Self-lock |
| Input Voltage (V) | 2.2V - 5.0V |
| Receiver Sensitivity | -112dBm @ 315MHz / -112dBm @ 433MHz |
