Round Panel Mount DC 5-48V Voltmeter

[SEN-04-065]
Shop with confidence Learn More
Availability: Out of stock
SKU
SEN-04-065

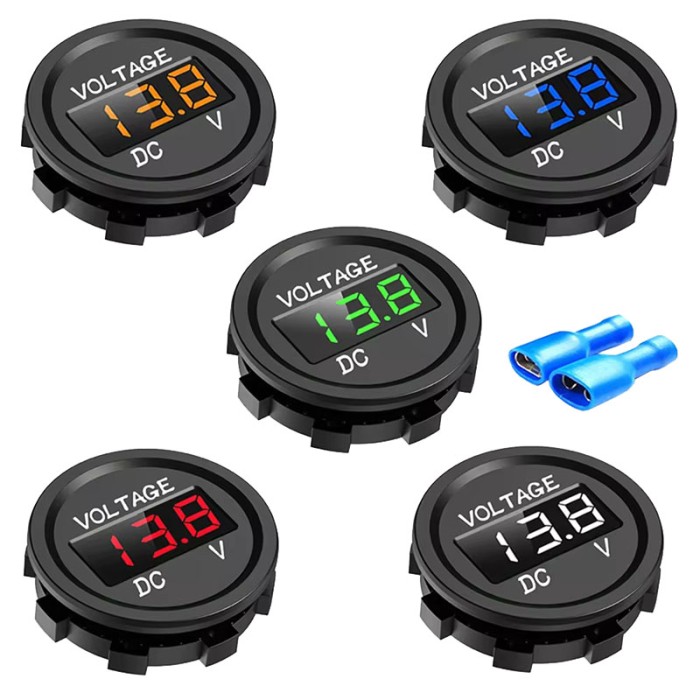

The Round Panel Mount DC 5-48V Voltmeter is a versatile and essential tool designed to monitor and display the voltage of various DC systems. This waterproof and flame-retardant voltmeter is crafted from eco-friendly plastic, ensuring durability and safety. It features a compact design with a 36mm diameter, making it easy to install in a variety of vehicles, including motorcycles, cars, boats, ATVs, UTVs, campers, and more. The voltmeter offers a clear 3-digit LED display in five optional colors (Red, White, Blue, Green, Orange) and is perfect for monitoring battery voltage and ensuring optimal performance.

Specifications of Round Panel Mount DC 5-48V Voltmeter

  • Voltage Measurement Range: 5 - 48V

  • Diameter: 36mm / 1.42in

  • Interface Type: Anode and cathode

  • Material: Eco-friendly plastic

  • Item Color: Black

  • Lamp Display Colors: Red, White, Blue, Green, Orange (Optional)

  • Display: 3-digit LED digital tube

  • Mounting Hole Diameter: 1-1/8" (28.5mm)

  • Mounting Panel Thickness: Up to 0.25" (6.35mm)

  • Waterproof: Yes

  • Application: Universal for cars, motorcycles, boats, ATVs, UTVs, campers, travel trailers, etc.

How to Use

  1. Installation:

    • Drill a 1-1/8" hole in your desired mounting panel, ensuring the panel is no more than 0.25" thick.

    • Insert the voltmeter into the hole and secure it in place using the provided nylon retaining nut.

    • Connect the voltmeter’s anode and cathode to your DC system's corresponding terminals.

  2. Operation:

    • Once installed, the voltmeter will automatically display the voltage of your system when powered on.

    • The LED display will show the current voltage, allowing you to monitor the battery's charge status and overall system voltage.

  3. Maintenance:

    • Periodically check connections to ensure they remain secure and that the voltmeter is functioning correctly.

    • Clean the display as needed to maintain visibility.
