Current Shunt Resistor - 300A
$4.2500
In stock
SKU
TLS-06-020
Volume discounts:
- +25 4 % $4.0600
- +100 7 % $3.9700
- +300 9 % $3.8800
- +500 11 % $3.7800
- +1000 13 % $3.6900
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Meinaite High-Precision Stainless Steel Vernier Caliper Previous

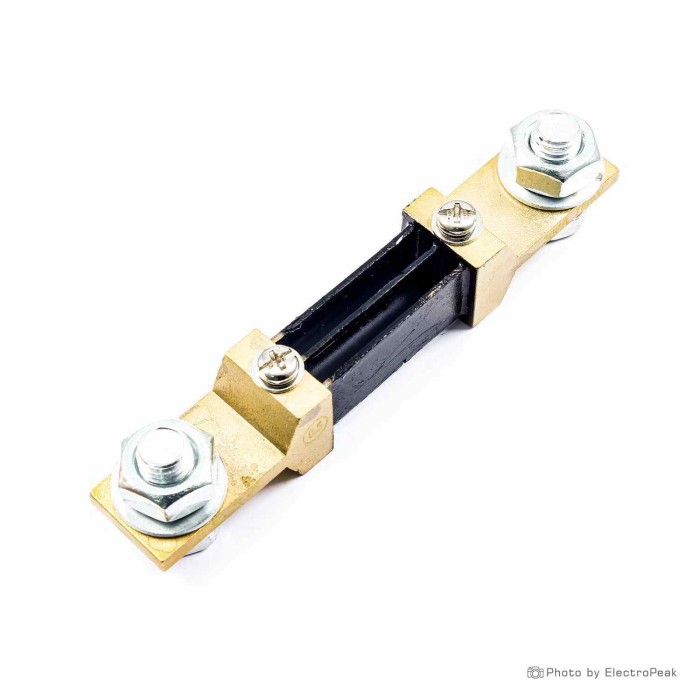

FL-2 Current Shunt Resistor - 300A, 75mV is a DC current shunt for high-current measurement applications. It is designed for use with DC digital amp meters and current monitoring systems. The shunt provides a 75mV voltage drop at 300A and uses an accuracy class of 0.5. It is suitable for DC power systems, battery systems, solar energy setups, industrial applications, and other high-current measuring instruments. The construction and listed operating data support current range extension in measuring instruments.
Features of FL-2 Current Shunt Resistor - 300A, 75mV
- DC current measurement
- 300A rated current
- 75mV voltage drop
- Accuracy class 0.5
- Suitable for DC digital amp meters
- Current range multiplication function
Specifications of FL-2 Current Shunt Resistor - 300A, 75mV
- Model: FL-2
- Rated current: 300A
- Current rating: 10A-3000A
- Voltage drop: 75mV
- Voltage drop: 60mV
- Voltage drop: 100mV
- Voltage drop: 50mV
- Voltage drop: 60mV
- Voltage drop: 70mV
- Voltage drop: 100mV
- Accuracy class: 0.5
- Accuracy class: 0.2
- Current type: DC (Direct Current)
- Application: For use with high-current ammeters
- Application: Use for DC digital Amp Meter
- Use cases: Power supplies, battery systems, solar energy, industrial applications
- Material: Copper with nickel plated
- Color: Black and Gold
- Overload capacity: 120% of rated current for 2hr
- Overload performance: Rated current 120%, 2 hours
- Ambient conditions: -40 ~ +60 „
- Relative humidity: ≤ 95% (35 „)
- Dimensions: 122x21 mm
- Function: Multiply the measuring range of current of measuring instruments
- Accuracy level: 2 ~ 4000A; 0.5: 5000 ~ 10000A; 1 level
How to Use FL-2 Current Shunt Resistor - 300A, 75mV
- Connect the shunt in the DC current measurement path.
- Link the shunt to a DC digital amp meter or current measuring instrument.
- Read the current value based on the measured voltage drop.
More Info
- Designed for high-current direct current measurement.
- Suitable for current monitoring in power supplies, batteries, solar energy, and industrial systems.
| Interface Type | Analog |
|---|---|
| Dimensions (mm) | 122x21 mm |
| Mounting Type | Screw holes |
| Output Type | Analog Voltage |
| Accuracy | 0.5 |
| Current Range (A) | 300A |
| Model | FL-2 |
| Channels | 1-channel |
| Display Type | None |
| Parameters | DC Current |
| Voltage Drop | 75mV |
