Current Shunt Resistor - 200A
$3.5000
In stock
SKU
TLS-06-019
Volume discounts:
- +25 5 % $3.3400
- +100 7 % $3.2500
- +300 9 % $3.1700
- +500 12 % $3.0900
- +1000 14 % $3.0100
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Current Shunt Resistor - 300A Previous

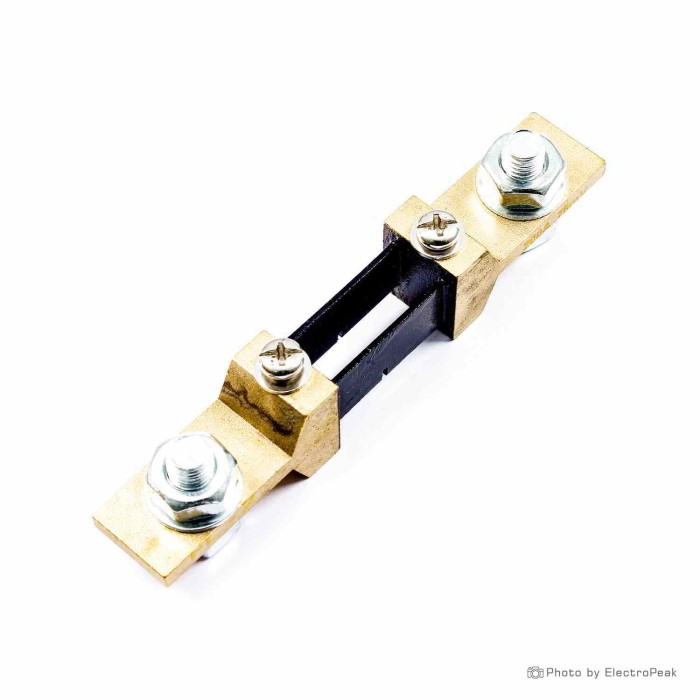

The FL-2 DC Current Shunt Resistor is designed for high-current measurement in DC circuits. It supports 200A rated current and produces a 75mV voltage drop. The shunt is made of copper with an anti-rust coating for added durability and corrosion resistance. It features two external terminals for circuit connection and mounting holes on both ends for secure installation. This current shunt is used for current measurement extension, current limiting, current sharing, and sampling.
Features of FL-2 DC Current Shunt Resistor - 200A, 75mV
- 200A rated current
- 75mV voltage drop
- DC current type
- Copper body with anti-rust coating
- Two external terminals
- Mounting holes on both ends
Specifications of FL-2 DC Current Shunt Resistor - 200A, 75mV
- Model: FL-2
- Current Type: Direct Current (DC)
- Rated Current: 200A
- Voltage Drop: 75mV
- Total Length: 115mm
- Material: Copper with anti-rust coating
- Connection: Two external terminals for power circuit
- Application: Current measurement extension, current limiting, current sharing and sampling in meters, communication systems, electronics, and power control
- Features: Easy to install, durable, precise operation
How to Use FL-2 DC Current Shunt Resistor - 200A, 75mV
- Install the shunt securely using the mounting holes.
- Connect the two external terminals to the circuit.
- Use it with a suitable meter for current measurement.
More Info
- Suitable for DC current measurement applications.
- Designed for use with a 200A DC current meter.
| Dimensions (mm) | 115mm |
|---|---|
| Mounting Type | Screw holes |
| Output Type | Analog Voltage |
| Current Range (A) | 200A |
| Voltage Range (V) | 75mV |
| Material | Copper |
| Model | FL-2 |
| Channels | 1-channel |
| Display Type | None |
| Parameters | Current |
| Voltage Drop | 75mV |
