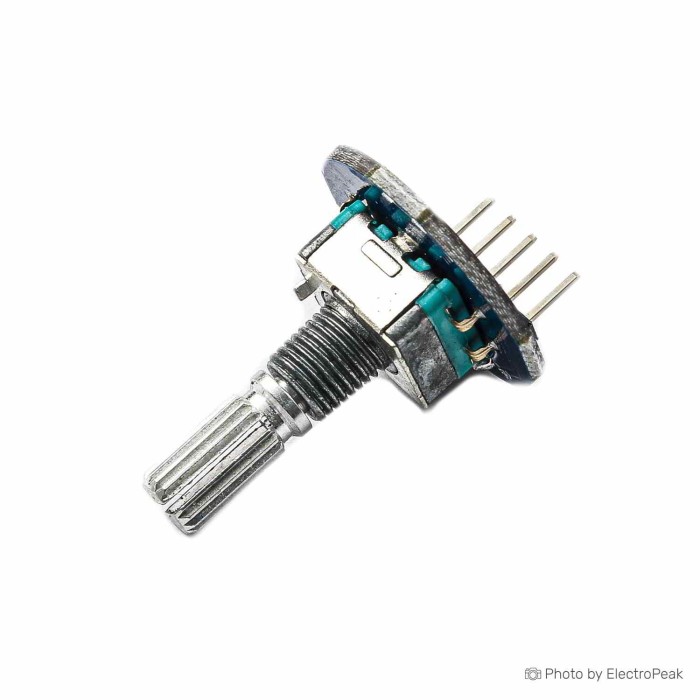

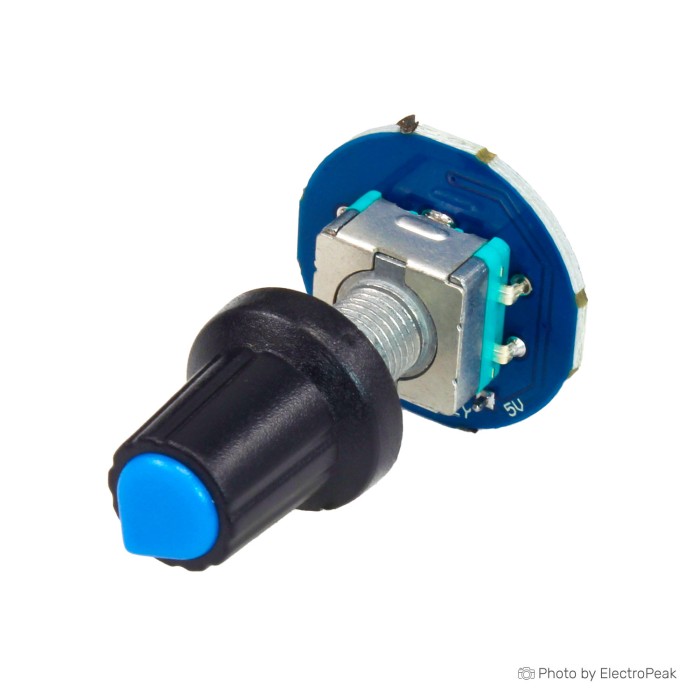

FZ0535 Rotary Encoder Module
$0.6600
In stock
SKU
SEN-23-008
Volume discounts:
- +50 2 % $0.6500
- +100 3 % $0.6400
- +500 5 % $0.6300
- +1000 6 % $0.6200
Product Variations: View out of stock variants
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
0-F 16Bit Rotary Coding Dial Switch- DIP Previous
The FZ0535 Rotary Encoder Module converts rotational movement into electrical pulses. It provides a digital Gray code output and includes a manual switch for interactive control in electronics and robotics projects. The module has a reset button on the encoder sensor to return it to the initial state and start counting from 0. It operates with a 5V supply and supports easy installation with Arduino.
Features of FZ0535 Rotary Encoder Module
- Rotational pulse output
- Digital Gray code output
- Manual switch included
- Reset button on the sensor
- Arduino ready
Specifications of FZ0535 Rotary Encoder Module
- Working voltage: 5V
- Precision: 20 pulse
- Pin count: 5
- Size: 37mm x 24mm
How to Use FZ0535 Rotary Encoder Module
- Connect the module to a 5V supply.
- Read the digital output from the encoder.
- Use the reset button to return the count to 0 when needed.
More Info
- The encoder is different from a potentiometer.
- The encoder has no limitation in full rotation.
| Interface Type | Digital |
|---|---|
| Operating Voltage (V) | 5V |
| Dimensions (mm) | 37mm x 24mm |
| Output Type | Digital |
| Accuracy | 20 Pulses |
| Push Button | Yes |
| Sensor Type | Rotary Encoder |
| Measurement Principle | Mechanical |
| Chipset | FZ0534 |
