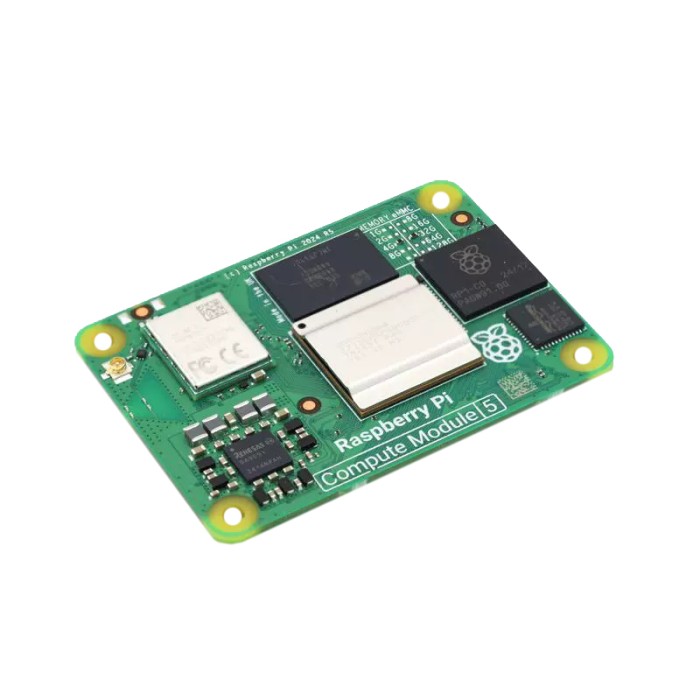

The Raspberry Pi Compute Module 5 (CM5) is a powerful and versatile computing solution designed for advanced applications. Featuring a Broadcom BCM2712 Quad-Core Cortex-A76 processor, customizable memory and storage options, and robust connectivity, the CM5 offers exceptional performance in a compact form factor. It is ideal for embedded systems, IoT, and multimedia applications with extended production support.
Specifications of Raspberry Pi Compute Module 5
-
Form Factor: 55 mm x 40 mm x 47 mm
-
Processor: Broadcom BCM2712 Quad-Core Cortex-A76 @ 2.4GHz
-
Memory Options: 2GB, 4GB, 8GB, or 16GB LPDDRAX
-
Storage Options:
-
eMMC: 0GB, 16GB, 32GB, or 64GB
-
SD card interface for external storage (only for variants without eMMC)
-
-
Connectivity:
-
Optional wireless: 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac, Bluetooth 5.0, BLE (onboard and external antenna options)
-
Onboard Gigabit Ethernet PHY with IEEE1588 support
-
USB Ports: 1x USB 2.0, 2x USB 3.0
-
M.2 M-Key for 2230/2242/2260/2280 devices (Gen 2/3 x1)
-
30 GPIO signals
-
-
Video Support:
-
Dual HDMI interface (up to 4Kp60)
-
2x 4-lane MIPI/DSI display interfaces
-
-
Multimedia: H.265 (4Kp60 decode), OpenGL ES 3.1 graphics, Vulkan 1.2
-
Power: 5V (up to 5A with USB-PD) via USB-C
-
Operating Temperature: -20°C to +85°C
-
Extras:
-
RTC battery connection
-
Power button
-
4-pin PWM fan header
-
