Raspberry Pi Compute Module 5 IO board
$36.9500
In stock
SKU
DEV-21-005
Volume discounts:
- +10 4 % $35.4900
- +25 6 % $34.7700
- +50 8 % $34.0400
- +100 10 % $33.3100
- +300 12 % $32.5800
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Raspberry Pi Compute Module 5 Previous

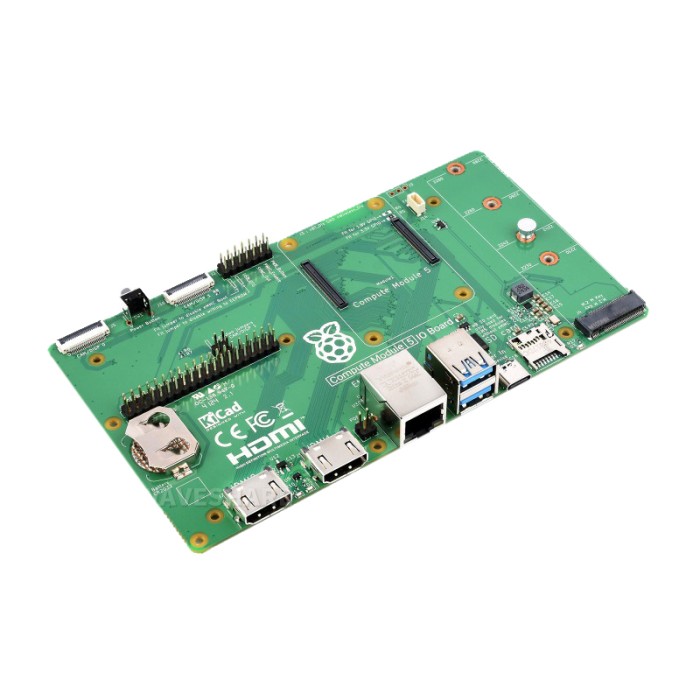

The Raspberry Pi Compute Module 5 IO Board is a development platform for the Raspberry Pi Compute Module 5 (CM5). It is designed for prototyping and integration with CM5-based builds. The board provides multiple connectivity options, power management features, and video outputs. It also supports standard Raspberry Pi accessories and peripherals. The Raspberry Pi Compute Module 5 IO Board is suitable for development workflows that require a feature-rich CM5 interface board.
Features of Raspberry Pi Compute Module 5 IO Board
- Standard 40-pin GPIO header
- Gigabit Ethernet RJ45 with PoE+ HAT+ support
- 2 × USB 3.0 sockets
- M.2 M-key PCIe socket
- 2 × MIPI DSI/CSI-2 FPC connectors
- Raspberry Pi HAT+ connector
- microSD card socket for CM5 Lite modules
- External +5V USB-C PSU input
- 4-pin fan connector
- Power button for the CM5
- 2 × full-size HDMI 2.0 connectors
- RTC battery socket
Specifications of Raspberry Pi Compute Module 5 IO Board
- Form factor: 160 mm × 90 mm
- Standard 40-pin GPIO header
- Gigabit Ethernet RJ45 with PoE+ HAT+ support
- 2 × USB 3.0 sockets
- M.2 M-key PCIe socket
- 2 × MIPI DSI/CSI-2 FPC connectors
- 22-pin 0.5 mm pitch cable
- Raspberry Pi HAT+ connector
- microSD card socket for CM5 Lite modules
- External +5V USB-C PSU
- 4-pin fan connector
- Power button to wake and shut down the CM5
- 2 × full-size HDMI 2.0 connectors
- RTC battery socket
How to Use Raspberry Pi Compute Module 5 IO Board
- Install the Compute Module 5 on the board.
- Connect the required peripherals and power supply.
- Use the available interfaces for development and integration.
More Info
- Official product page available
| Interface Type | Digital, USB, UART, MIPI, I2C, SPI, PWM, Ethernet, HDMI |
|---|---|
| Operating Voltage (V) | 5V |
| Dimensions (mm) | 160 x 90 |
| Mounting Type | Screw holes |
| Keys Count | 1 |
| Protocols | Gigabit Ethernet, HDMI 2.0, MIPI DSI/CSI-2, PCIe |
| Conversion Type | PCIe to M.2 |
