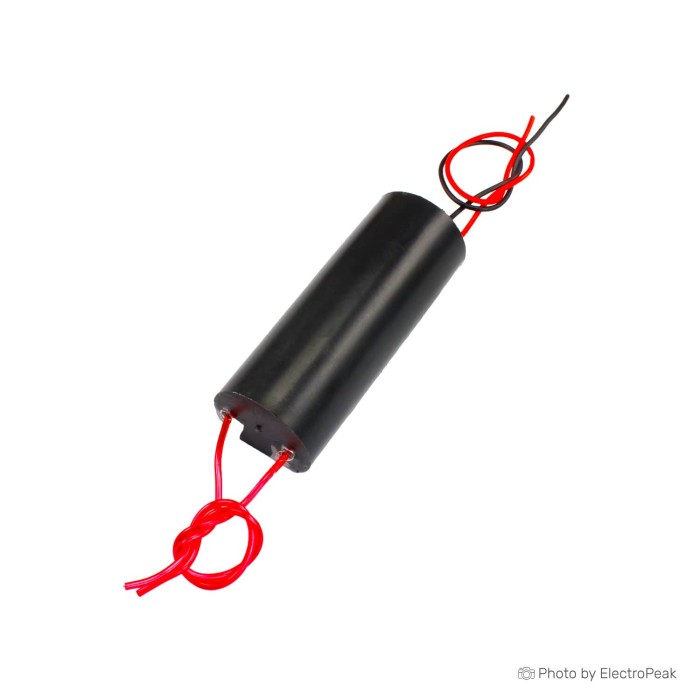

Pulse High Voltage Inverter Arc Generator- 400KV

$1.5000
In stock
SKU
BAT-02-146
Volume discounts:
  • +100 7 % $1.3900
  • +300 10 % $1.3500
  • +500 12 % $1.3200
  • +1000 15 % $1.2800
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence Learn More
Pulse High Voltage Inverter 901 Arc Generator- 1000KV Previous Pulse High Voltage Inverter 901 Arc Generator- 1000KV

Specifications of Pulse High Voltage Inverter Arc Generator:

  • The high voltage module uses the Tesla coil principle, it outputs a high voltage pulse high voltage current, small volume, high efficiency, and a simple peripheral circuit (simply connect the switch, the battery can be)The intensity of discharge violent.
  • Model: 1106
  • Input voltage: DC3-6V
  • Input current: 2A-5A (related to voltage)
  • High voltage pulse type: high and low pressure integral
  • Output voltage: over 400KV
  • High voltage bipolar discharging distance: 10-20mm
  • The output high-voltage line length is about 100mm
  • The input power line length is about 100mm (red for positive)
  • Size: 88*26mm
  • About power supply: can use lithium battery 3.7V two series, such as 18650 battery, mobile phone battery idle (to remove the protection board, proposed capacity in 2000mAh above) or NiCd / NiMH batteries, 4V or 6V lead-acid battery, etc.
  • This module is the science of small production using high voltage inverter transformer/booster finished product module, input DC4.8-7.2V voltage at the output end get 500000 volts of DC high voltage (arc about 1-2 cm), can be used as a high school science laboratory, electronic instrument, negative ion generator, science making use of high voltage source.

Notice:

  • It must use rechargeable battery-powered
  • Output spacing in the 1.4CM, the normal use of 1CM or so can be input and output is proportional to (if the power supply is more than three o’clock when the maximum output distance 8MM, the power supply in the 6V output gap in the 1.4CM).
  • The product needs Intermittent short-term work, each time the work of the proposed control in 5 seconds. You can work for a while and then work again, The normal use of the internal parts of the module temperature will rise, the work time will be too long, and powerful damage
  • This item can’t Short circuit, and can’t exceed 2cm Arc(1-1.5cm is normal).
  • Can’t work all the time, can only work Intermittently.
  • Improper operation can make the item break very easy.
