Pulse High Voltage Inverter 901 Arc Generator- 1000KV
$1.9500
In stock
SKU
BAT-02-145
Volume discounts:
- +50 5 % $1.8600
- +100 7 % $1.8200
- +300 9 % $1.7700
- +500 11 % $1.7300
- +1000 14 % $1.6800
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
500W DC/AC Pure Sine Wave Inverter Module - 12V to 220V Previous

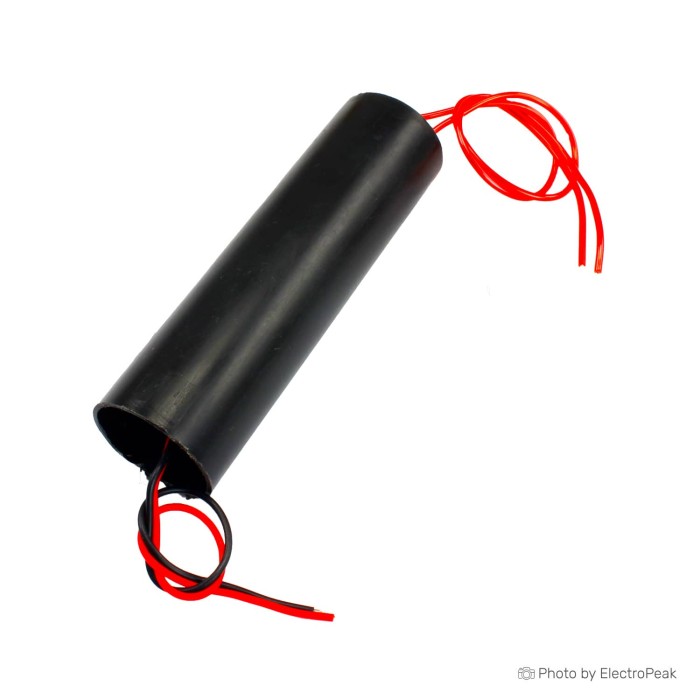

The MC-901 Pulse High Voltage Inverter Arc Generator is a high-voltage spark module designed for pulse DC output. It operates with an input voltage of 3.7V to 7.4V and an input current of 0.5A to 1A. The output voltage ranges from 800KV to 1000KV. This module is intended for careful use in safe conditions. It supports a high-voltage bipolar discharge distance of 1.5cm to 2cm.
Note: The spark produced by this product does not generate high flame or heat and is not suitable for lighting fire.
Features of MC-901 Pulse High Voltage Inverter Arc Generator - 1000KV
- Pulse DC output
- High-voltage spark generation
- High-voltage bipolar discharge
- Compact module size
- Short continuous working time
Specifications of MC-901 Pulse High Voltage Inverter Arc Generator - 1000KV
- Module type: MC-901
- Input voltage: 3.7V-7.4V
- Input current: 0.5A-1A
- Input wire length: 9 cm
- High voltage type: pulse DC type
- Output voltage: 800KV-1000KV
- Continuous working time: Less than 10 seconds per use
- Recommended battery capacity: More than 2000 mAh
- Preferred battery capacity: 4000 mAh and above
- Output wire length: 16 cm
- High voltage bipolar discharge distance: 1.5cm - 2cm
- Size: 88 x 26mm (LxD)
- Usable with 3.7V lithium batteries
- Usable with 18650 batteries
- Usable with nickel-cadmium batteries
- Usable with 4V lead-acid batteries
- Usable with 6V lead-acid batteries
How to Use MC-901 Pulse High Voltage Inverter Arc Generator - 1000KV
- Set the output wire distance before powering on.
- Start from a short arc distance and increase it gradually.
- Avoid no-load operation.
- Do not use the module continuously for more than 10 seconds.
More Info
- Keep the battery voltage around 6V during sparking for full output.
- Using low-capacity lithium batteries may reduce output.
