500W DC/AC Pure Sine Wave Inverter Module - 12V to 220V
SAVE
As low as $23.5000
In stock
Only %1 left
SKU
BAT-17-002
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
DC/AC Step-Up Inverter Module - 500W, 12V to 220V Previous

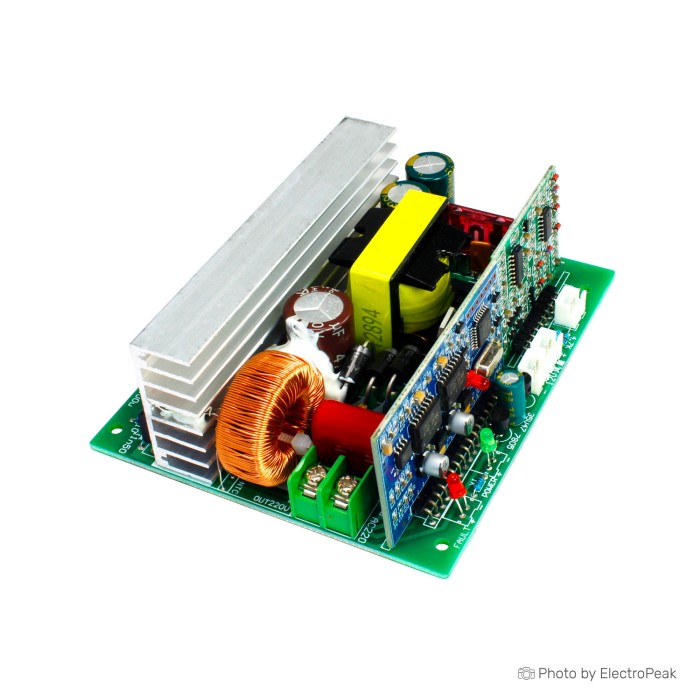

The DC/AC Pure Sine Wave Inverter Module is designed to convert DC input to AC output with a pure sine wave. It supports selectable 12V, 24V, and 48V DC input and adjustable 220V or 110V AC output. The module is available as a 1000W version with 600W real power. It operates at a pre-set 50Hz frequency and includes protection against short circuit and overload. Its compact form factor makes it suitable for electronics and power conversion applications where a pure sine wave output is required.
Features of DC/AC Pure Sine Wave Inverter Module - 1000W, 12V/24V/48V to 220V/110V
- Pure sine wave output
- Selectable DC input voltage
- Adjustable AC output voltage
- 1000W peak power
- 600W real power
- 50Hz preset frequency
- Short circuit protection
- Overload protection
Specifications of DC/AC Pure Sine Wave Inverter Module - 1000W, 12V/24V/48V to 220V/110V
- Waveform: Pure sine wave
- Waveform: Full-wave sine
- Input voltage: 12/24/48V DC selectable
- Output voltage: 220V/110V AC adjustable
- Peak power: 1000W
- Real power: 600W
- Frequency: 50Hz preset
- Dimensions: 171x119x52 mm
How to Use DC/AC Pure Sine Wave Inverter Module - 1000W, 12V/24V/48V to 220V/110V
- Select the appropriate DC input voltage.
- Connect the module with correct polarity.
- Use the required AC output setting.
More Info
- Do not use a power supply to start the module.
- Use an acid battery for operation.
- For 12V use, do not exceed 16V.
- Use standard copper wires shorter than 1 meter.
- Insulate the base plate with plastic or foam boards.
- The module does not include charging function.
