PC817 Optocoupler Isolation Module
SAVE
As low as $0.4100
In stock
Only %1 left
SKU
SEN-19-013
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Waveshare Laser Receiver Module Previous

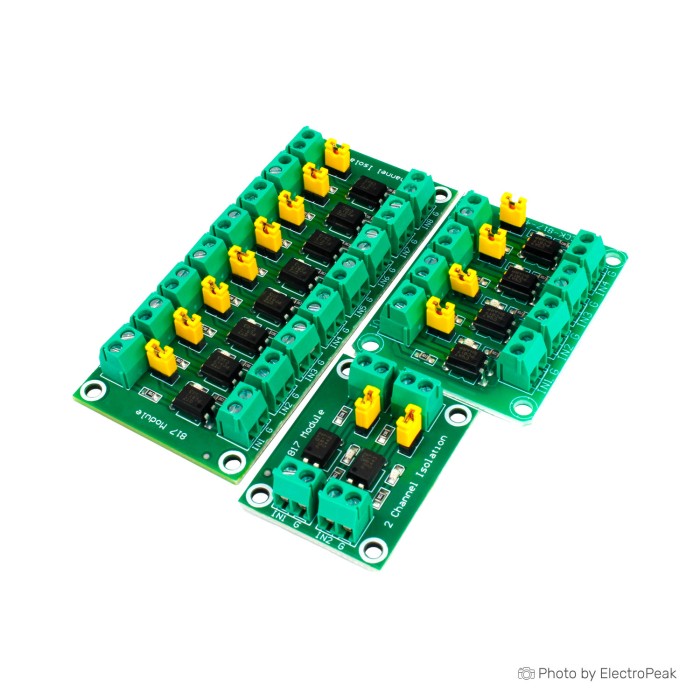

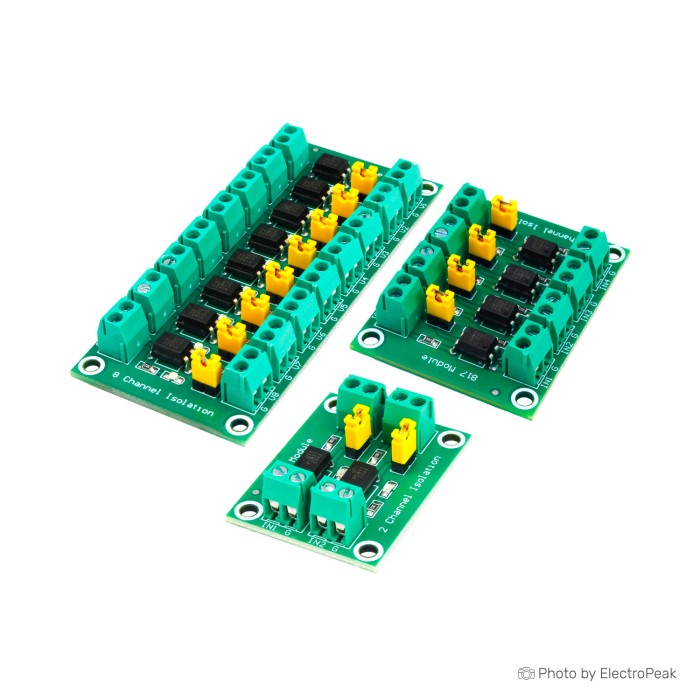

PC817 Optocoupler Isolation Module provides electrical isolation for control signals and helps separate different parts of a circuit. It is available with 2, 4, or 8 PC817 optocouplers, depending on the version. Each optocoupler includes an internal LED and an optical transistor. The module is designed for signal isolation between input and output sections. It supports use in circuits that require isolation between digital and analog sections. The onboard 4-channel version provides independent channels for separate signal control.
Features of PC817 Optocoupler Isolation Module - 2/4/8 Channel, 5V DC
- Electrical isolation
- 2, 4, or 8 channels
- PC817 optocoupler type
- Independent onboard channels
- Jumper cap output selection
Specifications of PC817 Optocoupler Isolation Module - 2/4/8 Channel, 5V DC
- Supply voltage: 5V DC
- Number of channels: 2, 4, 8
- Optocoupler type: PC817
- Drive terminal signal voltage: 3.6-24V DC
- Output terminal voltage range: 3.6-30V DC
- Maximum output terminal current: 10mA
- Dimensions: 48x38 mm
- Input resistance: 3 kΩ
- Output resistance: 3 kΩ
How to Use PC817 Optocoupler Isolation Module - 2/4/8 Channel, 5V DC
- Connect the module supply to 5V DC.
- Apply the control signal to the drive terminal.
- Use the output terminal for the isolated signal path.
More Info
- Suitable for control signal isolation.
- Available in 2-channel, 4-channel, and 8-channel versions.
| Operating Voltage (V) | 5V |
|---|---|
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 48x38 mm |
| Output Type | Phototransistor |
| Channels | 2-channel, 4-channel, 8-channel |
| Chipset | PC817 |
| Voltage Range | 3.6-30V DC |
