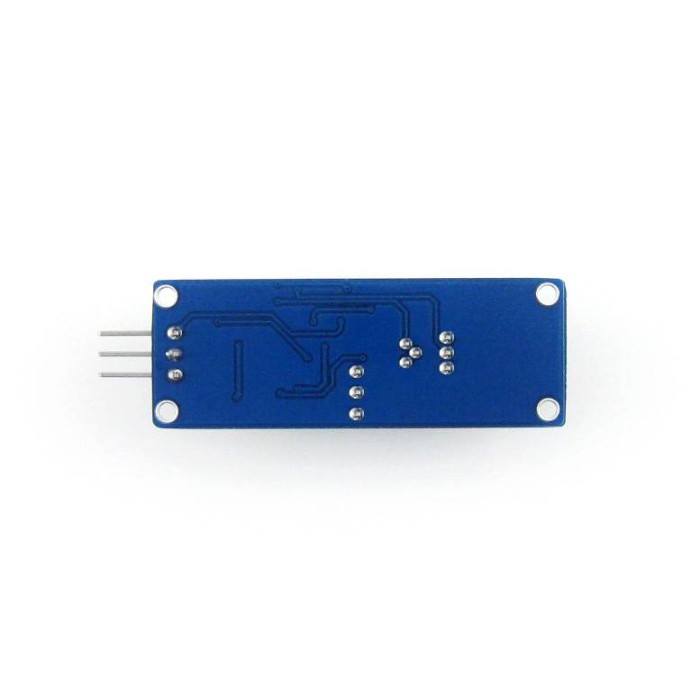

Waveshare Laser Receiver Module

The Waveshare Laser Receiver Module is a laser obstacle detection sensor module for precise and efficient detection. It uses a transmitter and receiver pair to send and receive laser waves. The receiver detects waves with the same frequency as the transmitter, helping improve detection accuracy. The module includes a digital output and a signal output indicator. It is designed for applications that require fast and accurate obstacle detection.

Features of Waveshare Laser Receiver Module

• Laser-based obstacle detection
• Transmitter and receiver operation
• Digital output
• Signal output indicator

Specifications of Waveshare Laser Receiver Module

• Effective Detection Distance: Approx. 0.8m (typical)
• Effective Detection Distance: Up to 1.5m (maximum)
• Operating Voltage: 2.5V to 5.0V
• Dimensions: 47.7mm x 17.9mm
• Output Type: Digital
• Driver Chip: PT1301
• Mounting Holes Size: 2.0mm

How to Use Waveshare Laser Receiver Module

1. Connect the module within the 2.5V to 5.0V operating range.
2. Use the digital output for obstacle detection signals.
3. Observe the signal output indicator during operation.

More Info

• Laser obstacle detection sensor module
• Suitable for obstacle detection, pipeline counter, smart robot, and obstacle-avoiding car
