PBS-33B 12mm Momentary Push Button Switch
SAVE
As low as $0.1900
In stock
Only %1 left
SKU
ELC-14-070
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
250V AC 15A 4 Feet Rocker Switch Previous

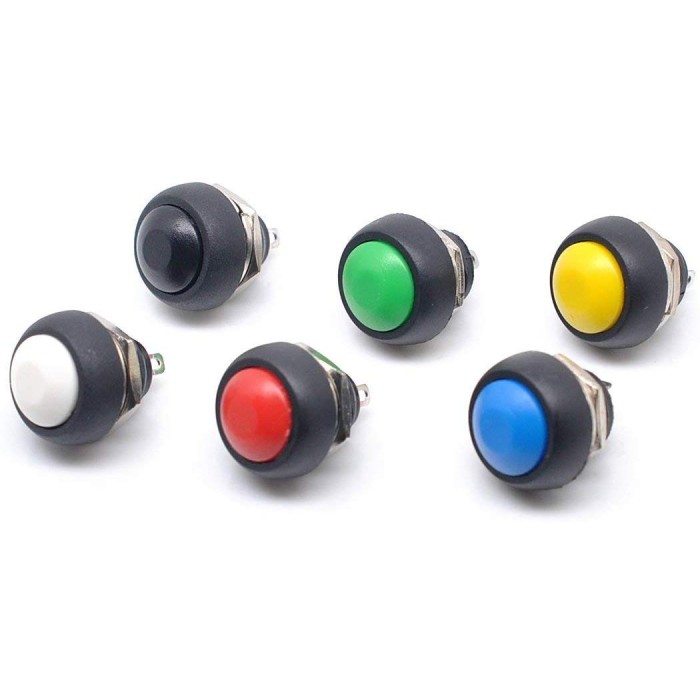

PBS-33B 12mm Momentary Push Button Switch is a two-pin push button switch for circuit control and user interaction. It operates as a momentary switch, staying active only while pressed. The switch is available in a 12 mm size and includes a washer and mounting nut. It is suitable for applications that require push-on operation and spring-back release. The product name and key electrical ratings are included for clear identification.
Features of PBS-33B 12mm Momentary Push Button Switch - 250V DC, 1A
- Momentary push action
- Two-pin design
- 12 mm mounting size
- Washer and mounting nut included
- Push-on operation
- Spring-back release
Specifications of PBS-33B 12mm Momentary Push Button Switch - 250V DC, 1A
- Model: PBS-33B
- Maximum voltage: up to 250V DC
- Maximum current: up to 1A
- Voltage: 220V AC
- Size: 12 mm
- 2 pins
- Washer and mounting nut included
- Operating temperature: -25 to +85 °C
- Lifespan: more than 10000 cycles
- Outer diameter: 17 mm
- Green button diameter: 12 mm
- Pin spacing: about 5 mm
- Module height without base: 19 mm
- Module height with base: 22 mm
- Action type: Momentary
- Contact type: NO
- Work type: Push to ON (OFF-ON)
- Dielectric intensity: 1500VAC / 1min
- Contact resistance: <50mΩ
- Insulation resistance: >100mΩ
How to Use PBS-33B 12mm Momentary Push Button Switch - 250V DC, 1A
- Mount the switch in a 12 mm opening.
- Secure it with the washer and mounting nut.
- Connect the wires to the two pins carefully.
- Press the button to activate the switch.
- Release the button to return it to its original state.
More Info
- Designed for push-on, momentary operation.
- The terminals are very small and require careful soldering.
- Contact type is NO.
- Work type is Push to ON (OFF-ON).
