250V AC 15A 4 Feet Rocker Switch
SAVE
As low as $0.1900
In stock
Only %1 left
SKU
ELC-14-097
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Cap for 6mm Tactile Push Button Switch - 6x6mm Previous

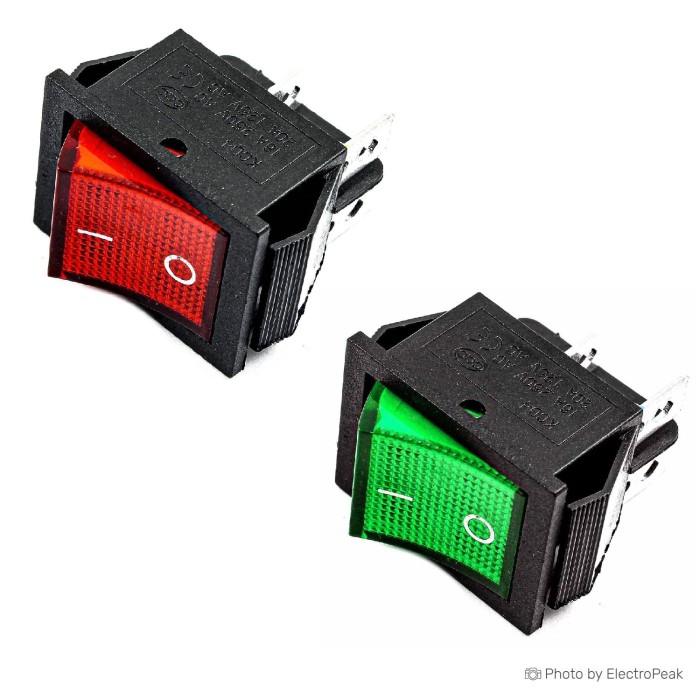

The 250V AC 16A 4 Pin Rocker Switch is a hand-operated switch for opening and closing a circuit. It provides clear ON and OFF control through a simple rocker action. The illuminated design gives a visible status indication. This rocker switch is suitable for panel-mounted switching applications. The product is supplied in packs of 5.
Features of 250V AC 16A 4 Pin Rocker Switch
- Illuminated switch
- 4-pin design
- ON/OFF control
- Hand-operated switching
- Panel-mounted format
Specifications of 250V AC 16A 4 Pin Rocker Switch
- Current: 16 A
- Rated current: 15 A
- Voltage: 250V AC
- Working temperature: -25 to +85
- Endurance: 5000 cycles
- Insulation resistance: 100m ohm
- Contact resistance: 50m ohm
- Outer dimensions: 24.5x31 mm
- Panel cut-out dimensions: 21x30 mm
- Body height without base and button: 18 mm
- Body height with base and button: 34.5 mm
- Pack quantity: 5 pieces
How to Use 250V AC 16A 4 Pin Rocker Switch
- Install the switch in the panel cut-out.
- Connect the circuit to the 4 pins.
- Press the rocker to switch between ON and OFF.
More Info
- Provides visible circuit status through the rocker position.
- Used for manual circuit control in electrical applications.
