DS-314 12mm Momentary Push Button Switch
SAVE
As low as $0.1100
In stock
Only %1 left
SKU
ELC-14-069
DS-314 12mm Momentary Push Button Switch is available to buy in increments of 5
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
PBS-33B 12mm Momentary Push Button Switch Previous

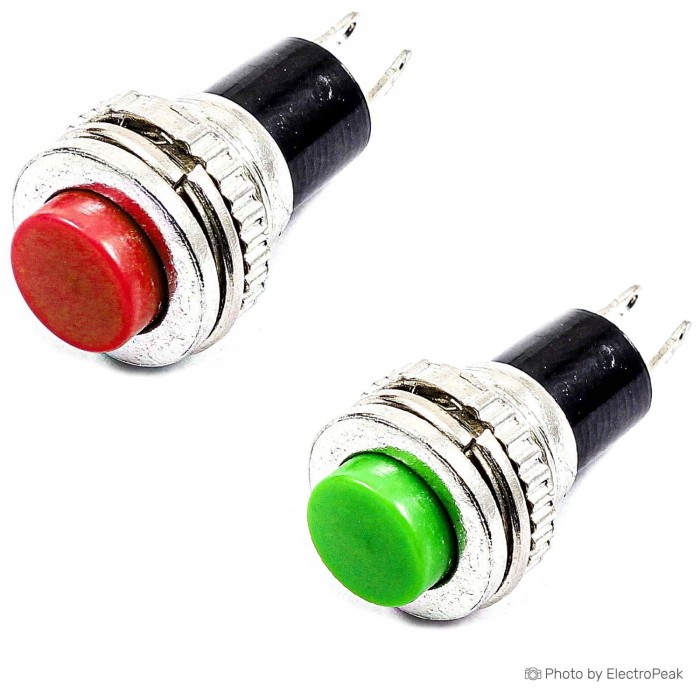

DS-314 Momentary Push Button Switch is a panel-mount push button for basic on-off control. It uses a momentary action, with OFF-(ON) operation and a normally open contact state. The switch is designed with 2 pin terminals and includes a washer and mounting nut. It is suitable for applications that require a simple push-to-connect, release-to-disconnect function.
Features of DS-314 Momentary Push Button Switch - 10mm, 2 Pin
- Momentary action
- Normally open contact
- 2 pin terminals
- Panel mounting
- Washer and mounting nut included
- Metal and plastic body
- Silver cylindrical body
Specifications of DS-314 Momentary Push Button Switch - 10mm, 2 Pin
- Model: DS-314
- Maximum voltage: up to 250V DC
- Maximum current: up to 1A
- Voltage: 220V AC
- Size: 10 mm
- Pin count: 2
- Material: Metal & Plastic
- Body color / shape: Silver / Cylindrical
- Rating voltage: 0.5A 250VAC
- Thread DIA / hole: 10mm / 0.39 in
- Mount type: Panel Mounting
- Operating temperature: -25 to +85 °C
- Lifespan: more than 10000 cycles
How to Use DS-314 Momentary Push Button Switch - 10mm, 2 Pin
- Mount the switch in the panel hole.
- Secure it with the washer and nut.
- Connect the 2 pin terminals.
- Press the button to close the circuit.
- Release the button to open the circuit.
More Info
- OFF-(ON) operation.
- Normally open in the released state.
- Push it on and release it off.
- Suitable for car horn, ignition, home doorbell, boat, ATV, and RV applications.
