DS-427 12mm Momentary Push Button Switch
SAVE
As low as $0.1700
In stock
Only %1 left
SKU
ELC-14-007
DS-427 12mm Momentary Push Button Switch is available to buy in increments of 5
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
DS-314 12mm Momentary Push Button Switch Previous

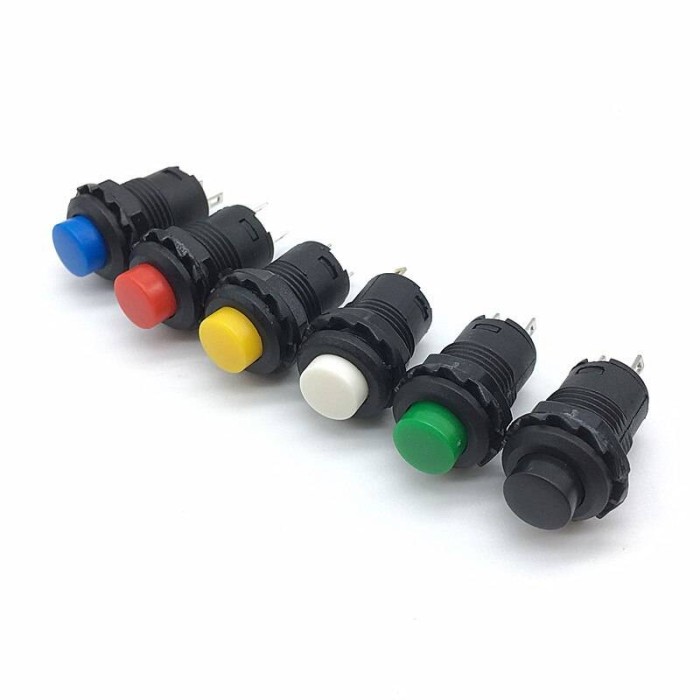

DS-427 12mm Momentary Push Button Switch is a two-pin push button switch for basic circuit control. It operates as a momentary switch, closing the connection when pressed and opening it when released. This 12mm switch is suitable for applications that require user interaction and manual control. It includes a washer and mounting nut for installation.
The DS-427 12mm Momentary Push Button Switch is designed for straightforward on-off operation in electrical and electronic systems. Its compact 12mm size makes it a practical choice for panel mounting. The switch is specified with a maximum DC voltage of up to 250V and a maximum current of up to 1A. It also supports 220V AC operation.
Features of DS-427 12mm Momentary Push Button Switch
- Momentary action
- 12mm mounting size
- Two-pin design
- Washer and mounting nut included
- NO at rest
- NC when pressed
Specifications of DS-427 12mm Momentary Push Button Switch
- Model: DS-427
- Maximum voltage: up to 250V DC
- Maximum current: up to 1A
- Voltage: 220V AC
- Size: 12mm
- At rest: NO
- Pin count: 2
- Washer and mounting nut included
- Operating temperature: -25°C to +85°C
- Service life: more than 10000 cycles
- Action type: Momentary (Reset)
- Hole diameter: 12mm
- Total length: 30mm
- Pin pitch: 6mm
- Rated current / voltage: 3A / 125VAC
- Rated current / voltage: 1.5A / 250VAC
How to Use DS-427 12mm Momentary Push Button Switch
- Prepare a 12mm mounting hole.
- Install the switch with the washer and mounting nut.
- Connect the two pins to the circuit.
- Press the button to close the circuit, then release it to open the circuit.
More Info
- Momentary push button switch for manual circuit control.
- Designed for panel-mount installation.
