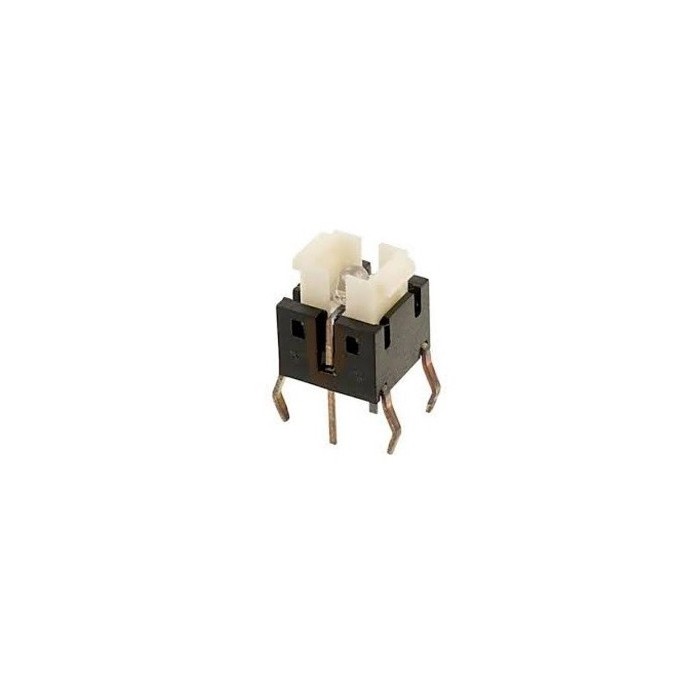

PB6141 8x8 Tactile Switch with Backlight

SAVE
As low as $0.0500
In stock
Only %1 left
SKU
M1-0084
PB6141 8x8 Tactile Switch with Backlight is available to buy in increments of 5
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence Learn More
PB6149L DIP Tactile Switch with Backlight and Cap Previous PB6149L DIP Tactile Switch with Backlight and Cap

The 8x8 Tactile Switch with Backlight is a compact and versatile input device designed to provide tactile feedback along with an integrated backlight for improved visibility. This switch is ideal for applications where reliable tactile response and visual indication are crucial, such as in consumer electronics, automotive controls, medical devices, and industrial equipment. The backlight feature ensures that the switch is easily visible even in low-light conditions, enhancing user experience and functionality.

Specification of PB6141 Tactile Switch with Backlight

  • Switch type: Tactile Switch
  • Rating current: 50mA (@12vdc )
  • Insulation Resistance: 100MΩ Min (@500 VDC)
  • Dielectric Strength: AC 250V (50/60 Hz for 1 minute)
  • Contact Resistance: 100mΩ Max. (Initial)
  • Electrically Life: 300,000 Cycles Min
  • Installation: DIP
  • Ambient Temperature: -20 to +70°C
  • Operating Force: 160 ± 50gf
  • Travel: 0.25 ± 0.1 mm

Development Resources of PB6141 Tactile Switch with Backlight
