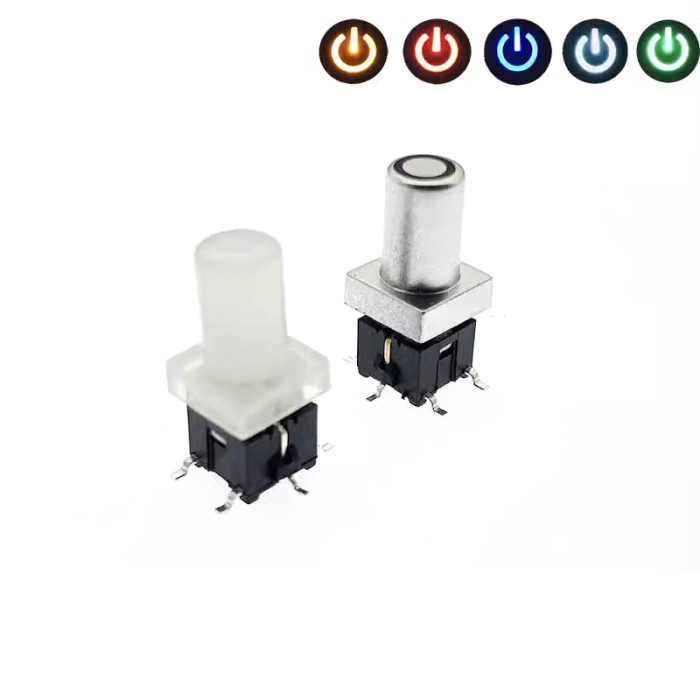

PB6149L DIP Tactile Switch with Backlight and Cap

[M1-0085]
Shop with confidence Learn More
Availability: In stock
SKU
M1-0085
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
As low as $0.60

The PB6149L DIP Tactile Switch with Backlight and Cap is a through-hole mount tactile switch designed for a variety of applications. With a rating of 10mA at 35VDC, this switch offers reliable performance and a long electrical life of at least 100,000 cycles. It features various color caps and a backlight, making it a versatile choice for both functional and aesthetic needs in electronic devices.

Specifications of PB6149L DIP Tactile Switch with Backlight and Cap

  • Switch Type: Through hole mount tactile switch
  • Rating: 10mA/35VDC
  • Insulation Resistance: 100MΩ Min (at 25VDC)
  • Dielectric Strength: AC 250V (50/60Hz For 1 minute)
  • Contact Resistance: 100mΩ max (Initial)
  • Electrical Life: 100,000 Cycles Min
  • Ambient Temperature: -20 to +60℃
  • Cap: Various color cap
  • Dimensions: ---

Datasheet of PB6149L DIP Tactile Switch with Backlight and Cap

PB6149L-1-102 Datasheet
