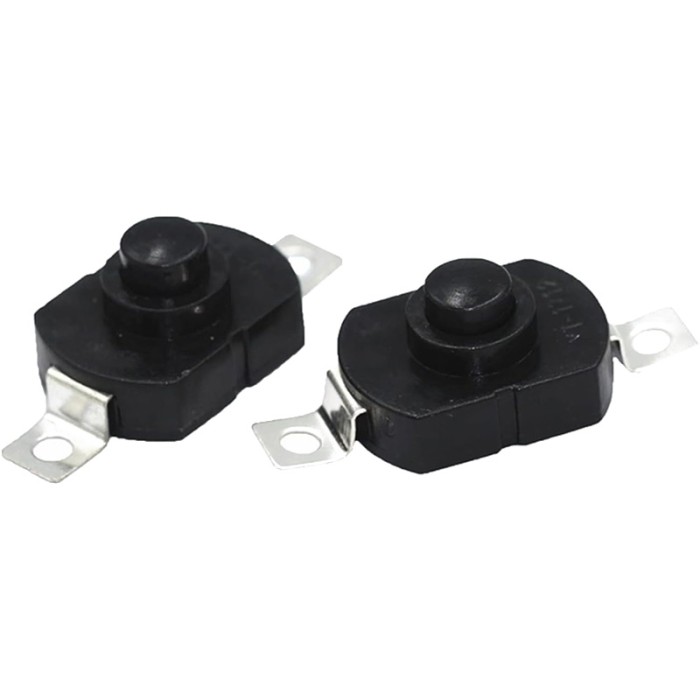

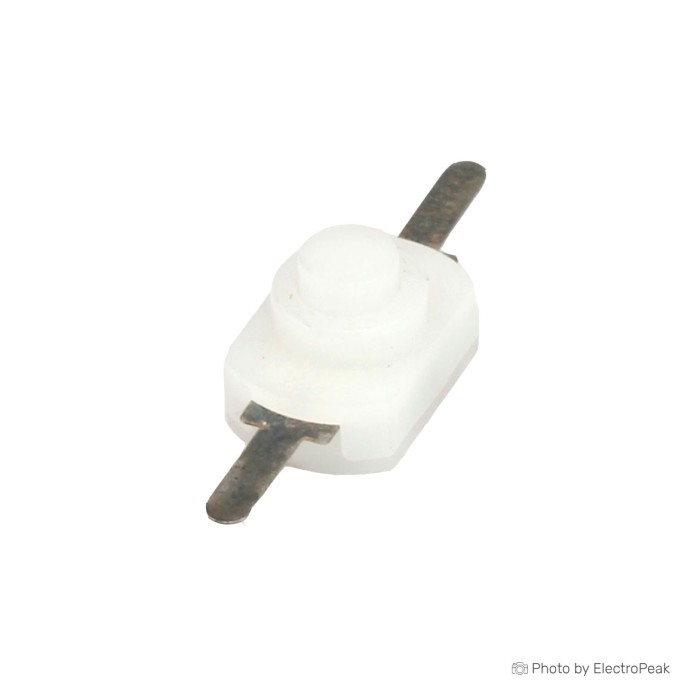

Flashlight Switch- Push Button Switch
SAVE
As low as $0.0480
In stock
Only %1 left
SKU
M1-0093
Flashlight Switch- Push Button Switch is available to buy in increments of 30
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
PB6141 8x8 Tactile Switch with Backlight Previous
Flashlight Switch is a push button switch for on/off control in flashlights and other electronic devices. It is available in multiple models and configurations. The series includes plastic and copper versions. It also features compact construction, low contact resistance, and high insulation resistance. A self-locking mechanism is included in the 1208YD model. The product is designed for simple installation and reliable switching.
Features of Flashlight Push Button Switch - 1208YD, KAN-28, 1712KD
- Push button switching
- Multiple model options
- Self-locking mechanism
- Compact construction
- Low contact resistance
- High insulation resistance
Specifications of Flashlight Push Button Switch - 1208YD, KAN-28, 1712KD
- Model: 1208YD
- Material: Plastic
- Switch type: Push button switch
- Dimensions: 12x8mm
- Voltage rating: DC 30V, AC 240V, 120V
- Current rating: 1A
- Features: Self-locking mechanism
- Contact resistance: Less than 200mΩ
- Insulation resistance: 2100MΩ
- Operation force: 700 ± 50gf
- Withstand voltage: 500V AC/min
- Life: 250,000 cycles
- Model: KAN-28
- Maximum current: 1.5A
- Maximum voltage: 250V
- Button size: 5.4mm
- No. of pins: 2
- Dimensions: 18x12mm
- Insulation resistance: Minimum 100MΩ at 500VDC
- Contact resistance: 100mΩ max
- Model: 1712KD
- Material: Copper
- Switch type: Push button switch
- Dimensions: 17x12x9.5mm
- Voltage rating: 30V
- Current rating: 1A
- Contact resistance: Less than 200mΩ
- Insulation resistance: Greater than 100MΩ
- Withstand voltage: 500V AC/min
- Operation force: 700 ± 100gf
- Life: More than 50,000 clicks
How to Use Flashlight Push Button Switch - 1208YD, KAN-28, 1712KD
- Select the model that matches the required specifications.
- Install the switch in the intended device panel or housing.
- Connect the switch according to the device wiring requirements.
- Test the push button operation for on/off switching.
More Info
- Suitable for flashlight switching applications.
- Available as 1208YD, KAN-28, and 1712KD models.
