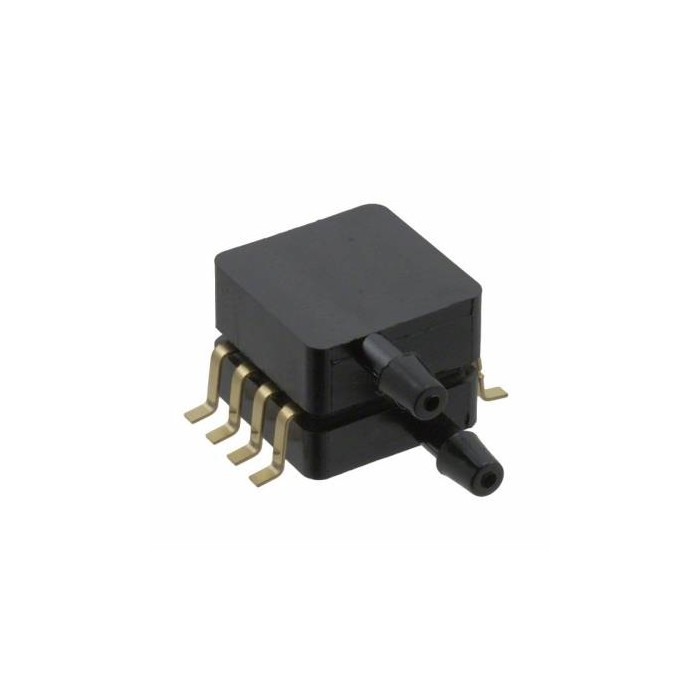

MP3V5004DP Differential Pressure Sensor

MP3V5004DP Differential Pressure Sensor is a piezoresistive pressure transducer with an analog output proportional to applied pressure. It is designed for microcontroller and microprocessor applications with A/D input. The sensor uses advanced micromachining techniques, thin-film metal, and precision bipolar processing. It is intended for use in consumer electronics, medical, and industrial applications.

Features of MP3V5004DP Differential Pressure Sensor - 0kPa To 3.92kPa, 0.6V/kPa

• Differential pressure sensing
• Analog output signal
• High-sensitivity piezoresistive design
• Surface-mount package
• 8-pin layout

Specifications of MP3V5004DP Differential Pressure Sensor - 0kPa To 3.92kPa, 0.6V/kPa

• Device Pressure: Differential
• Operating Pressure Range: 0kPa to 3.92kPa
• Maximum Overload Pressure: 16kPa
• Equivalent Overload Pressure Range: <20 psi
• Accuracy: ±2.5%
• Output Voltage: 0.6 to 3V
• Minimum Operating Supply Voltage: 2.7V
• Typical Operating Supply Voltage: 3V
• Maximum Operating Supply Voltage: 3.3V
• Maximum Supply Current: 10mA
• Minimum Operating Temperature: 0°C
• Maximum Operating Temperature: 85°C
• Media: Air
• Packaging: Tray
• Pin Count: 8
• Supplier Package: SNSR
• Mounting: Surface Mount
• Package Height: 9.66(Max)
• Package Length: 12.32(Max)
• Package Width: 12.32(Max)
• PCB changed: 8
• MSL: MSL 3 – 168 hours
• Sensor Style: SOP
• Sensitivity: 0.6V/kPa

How to Use MP3V5004DP Differential Pressure Sensor - 0kPa To 3.92kPa, 0.6V/kPa

1. Mount the sensor as a surface-mount component.
2. Connect the 8 pins to the target circuit.
3. Use the analog output with an A/D input.

More Info

• Suitable for differential pressure measurement
• Designed for air as the media
