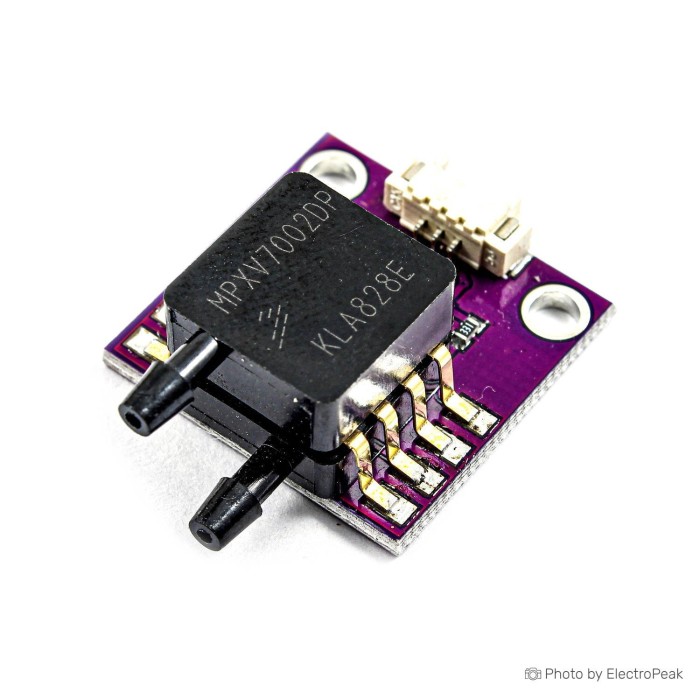

CJMCU MPXV7002DP Airspeed Sensor Breakout For APM
$42.9500
In stock
SKU
SEN-08-012
Volume discounts:
- +10 4 % $41.3400
- +25 6 % $40.5400
- +50 7 % $39.7300
- +100 9 % $38.9300
- +300 11 % $38.1300
Product Variations: View out of stock variants
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
LPS331AP Pneumatic Atmospheric Pressure Module Previous
CJMCU MPXV7002DP Airspeed Sensor Breakout For APM is an airspeed pressure sensor module based on the MPXV7002DP silicon pressure sensor chip. It provides a high-level analog output proportional to applied pressure and is designed for use with microcontroller or microprocessor projects with A/D inputs. The module measures positive and negative pressure. It uses a 2.5V offset as a conventional zero and supports pressure sensing up to 7kPa through a single port. It is also used as an airspeed sensor in Arduplane.
Features of CJMCU MPXV7002DP Airspeed Sensor Breakout For APM
- MPXV7002DP chip
- Analog output
- Positive and negative pressure measurement
- 2.5V offset
- Arduplane support
Specifications of CJMCU MPXV7002DP Airspeed Sensor Breakout For APM
- Pressure range: -2.0 to 2 kPa
- Supply voltage: 4.75 to 5.25 V DC
- Current: 10 mA DC
- Voltage offset: 0.5 V
- Accuracy: ±2.5% voltage offset
- Sensitivity: 1.0 V/kPa
- Output voltage: 0.5V ~ 4.5V
- Input voltage: 4.75V ~ 5.25V
- Accuracy: ±5%
- Maximum pressure: ±10.88 PSI (±75 KPa)
- Operating pressure: ±0.29 PSI (±2 kPa)
- Operating temperature: 10°C ~ 60°C
- Pin number: 3 Pin
- Size: 22mm x 22mm
How to Use CJMCU MPXV7002DP Airspeed Sensor Breakout For APM
- Connect the module to a microcontroller or microprocessor with an A/D input.
- Apply a 4.75 to 5.25 V DC supply.
- Read the analog output for pressure measurement.
More Info
- Based on the MPXV7002 progressive integrated silicon pressure sensor chip.
- Uses a piezoresistive transducer in a small package.
- Suitable for Arduplane airspeed sensing.
| Interface Type | Analog |
|---|---|
| Operating Voltage (V) | 4.75 to 5.25 VDC |
| Operating Current (mA) | 10 mA |
| Operating Temp (°C) | 10 to 60 |
| Output Type | Analog Voltage |
| Accuracy | ±2.5% Offset Voltage |
| Resolution | 1.0 V/kPa |
| Response Time | 1 ms |
| Measurement Range | -2.0 to 2 kPa |
| Environmental Parameter | Pressure |
| Chipset | MPXV7002 |
| Relay Output | No |
