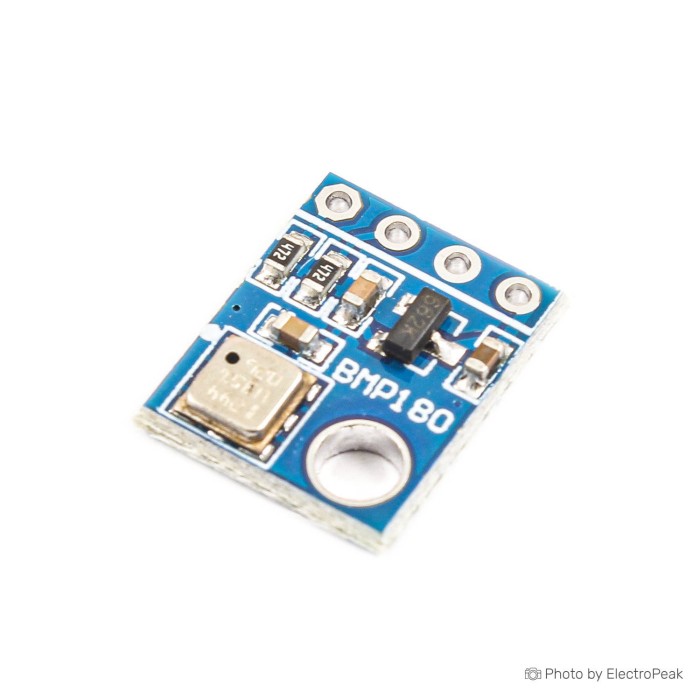

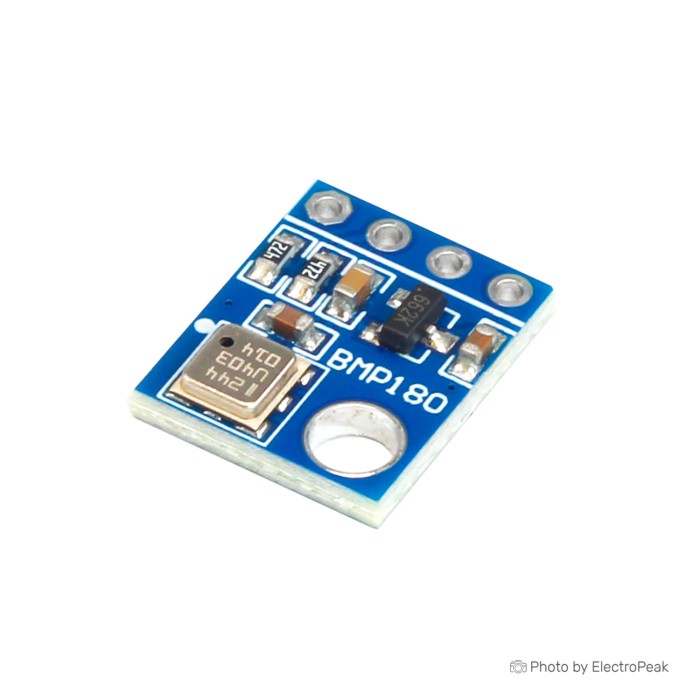

GY-68 BMP180 Digital Barometric Pressure Sensor Module
$0.3400
In stock
SKU
SEN-08-013
Volume discounts:
- +100 3 % $0.3300
- +500 6 % $0.3200
- +1000 9 % $0.3100
- +10000 12 % $0.3000
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
CJMCU MPXV7002DP Airspeed Sensor Breakout For APM Previous
GY-68 BMP180 Digital Barometric Pressure Sensor Module is a compact digital barometric pressure sensor module for pressure and temperature measurement. It uses the BMP180 chip and provides an I2C interface for system integration. The module is fully calibrated and designed for low-power operation. It measures pressure in the 300 to 1100hPa range and supports temperature measurement. This sensor is suitable for electronics and robotics projects where a digital pressure sensor module is needed.
Features of GY-68 BMP180 Digital Barometric Pressure Sensor Module - I2C
- Digital barometric pressure sensing
- BMP180 chip
- I2C interface
- Temperature measurement support
- Fully calibrated
Specifications of GY-68 BMP180 Digital Barometric Pressure Sensor Module - I2C
- Voltage source: 1.8 to 3.6 volts
- I/O voltage: 1.62V ~ 3.6V
- Input voltage: 1.8V ~ 3.6V
- Pressure range: 300 to 1100hPa
- Pressure range: 300hPa ~ 1100hPa
- Interface: I2C
- Output type: Digital
- Pressure accuracy: 0.01 hPa
- Pressure accuracy: ±0.12 hPa
- Temperature accuracy: 0.1 °C
- Temperature accuracy: ±2°C
- Temperature range: -40°C ~ +85°C
- Measurement time: 5ms
- Pin number: 4 Pins
- Size: 10mm x 13mm
- RMS noise expressed in pressure: 0.06 hPa (ultra-low power mode)
- RMS noise expressed in pressure: 0.02 hPa (ultra high-resolution mode)
- RMS noise expressed in altitude: 0.5 m (ultra-low power mode)
- RMS noise expressed in altitude: 0.17 m (ultra high-resolution mode)
How to Use GY-68 BMP180 Digital Barometric Pressure Sensor Module - I2C
- Connect the module using the 4-pin interface.
- Provide power within the specified voltage range.
- Use the I2C interface to read pressure and temperature data.
More Info
- Based on BMP180 sensor technology.
- Compact module format.
- Designed for digital pressure sensing applications.
| Interface Type | I2C |
|---|---|
| Operating Voltage (V) | 1.8 to 3.6 V |
| Operating Temp (°C) | -40 to 85 |
| Output Type | I2C |
| Accuracy | 0.01 hPa, 0.1 °C |
| Resolution | 0.01 hPa |
| Measurement Range | 300 to 1100 hPa |
| Environmental Parameter | Temperature, Pressure |
| Chipset | BMP180 |
| Relay Output | No |
| Protocols | I2C |
| Temp Accuracy | 0.1 °C |
