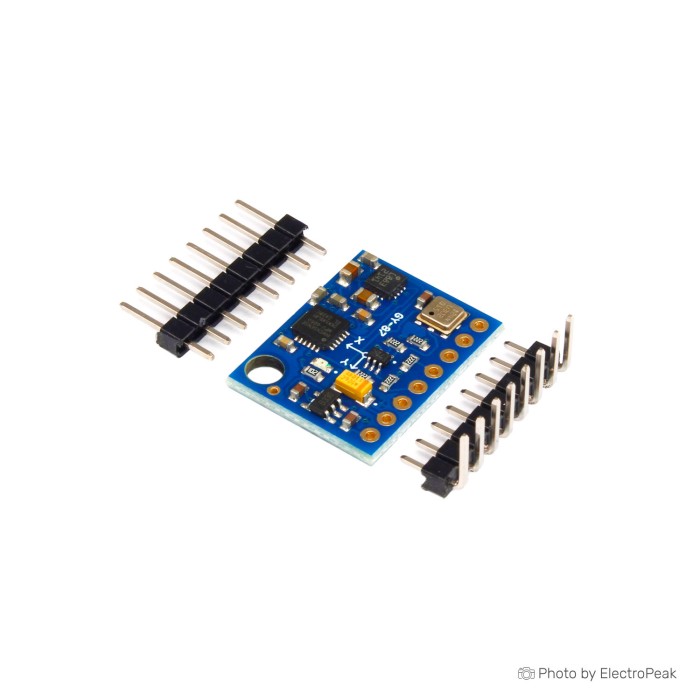

GY-87 10DOF IMU MPU6050 HMC5883L BMP180 Sensor Module
$4.7600
In stock
SKU
SEN-18-018
Volume discounts:
- +25 4 % $4.5700
- +100 6 % $4.4800
- +300 8 % $4.3800
- +500 10 % $4.2900
- +1000 12 % $4.2000
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Gy 953 9 Axis I2C Serial Imu Ahrs Module Previous
GY-87 10DOF IMU Sensor Module combines a three-axis gyroscope, three-axis accelerometer, three-axis magnetic field sensor, and pressure sensor in a compact board. It uses the MPU6050, HMC5883L, and BMP180 chips and communicates through the I2C interface. The module is designed for motion sensing, orientation detection, and pressure measurement. It also includes a built-in ultra-low linear LDO voltage regulator and a logic level converter for I2C. A power LED and onboard filters are included to reduce noise from motor and other high-current electronics.
Features of GY-87 10DOF IMU Sensor Module - MPU6050, HMC5883L, BMP180
- 10DOF sensor integration
- MPU6050, HMC5883L, and BMP180 chips
- All sensors connected to I2C bus
- Two I2C addresses for MPU6050
- Ultra-low linear LDO voltage regulator
- Onboard noise-reducing filters
- Power LED included
- I2C logic level converter
- Designed for 5V logic level
Specifications of GY-87 10DOF IMU Sensor Module - MPU6050, HMC5883L, BMP180
- Chip: MPU6050 + HMC5883L + BMP180
- Voltage: 3-5V
- Communication: I2C
- Dimensions: 2.2x1.7cm
- Dimensions: 20x16mm
- Gyroscope range: 1000 2000 + 250 500 °/ s
- Acceleration range: ± 2 ± 4 ± 8 ± 16 g
- Magnetic field range: ±8 gauss
- Magnetic field accuracy: 5 milligauss
- Temperature range: 40- to 85+ degrees Celsius
- Barometric pressure range: 300 to 1100 hectopascal
- Altitude measurement range: 500 meters below sea level to 9000 meters above sea level
How to Use GY-87 10DOF IMU Sensor Module - MPU6050, HMC5883L, BMP180
- Connect the module through the I2C interface.
- Set the required I2C address for MPU6050 if needed.
- Read motion, magnetic, and pressure data from the sensor chips.
More Info
- Suitable for AHRS-based motion sensing applications.
- Includes a three-axis gyroscope, three-axis accelerometer, three-axis magnetometer, and pressure sensor.
- Supports 6D orientation detection.
| Interface Type | I2C |
|---|---|
| Operating Voltage (V) | 3-5V |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 22 x 17 mm |
| Mounting Type | THT (Through Hole) |
| Output Type | I2C |
| Accuracy | 1 to 2 degrees, 5 mGauss |
| Resolution | 16-bit |
| Measurement Range | 300 to 1100 hPa, ±8 Gauss, -500m to 9000m altitude |
| Number of Axes | 10-axis |
| Acceleration Range (g) | ±2g, ±4g, ±8g, ±16g |
| Gyro Range (dps) | ±250dps, ±500dps, ±1000dps, ±2000dps |
| Push Button | No |
| Sensor Type | IMU, AHRS, Barometric Pressure, Digital Compass, Accelerometer, Gyroscope |
| Measurement Principle | Piezo-resistive |
| Protocols | I2C |
| Supply Current | mA |
| Chipset | MPU6050 + HMC5883L + BMP180 |
