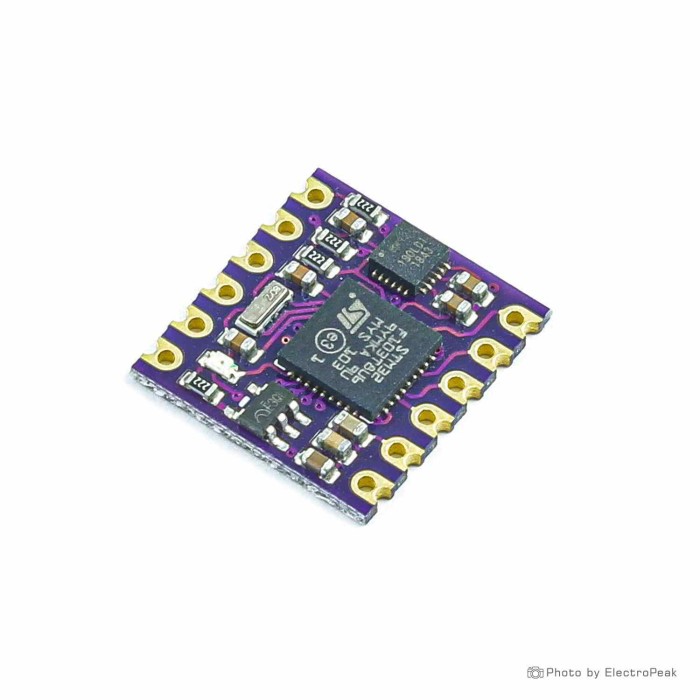

Gy 953 9 Axis I2C Serial Imu Ahrs Module

GY-953 9 Axis IMU AHRS Module is a nine-axis sensor module with SPI and serial communication. It provides acceleration, gyroscope, compass, and Euler key angle outputs. The module is suitable for Arduino projects, robotics, and other electronics applications. It offers direct output for Euler angles, 9-axis raw sensor data, and the four elements. The GY-953 module supports practical motion and orientation data output in a compact form factor.

Features of GY-953 9 Axis IMU AHRS Module - SPI, Serial

• 9-axis IMU and AHRS module
• SPI and serial communication
• Euler angle output
• Raw sensor data output
• Compact module size

Specifications of GY-953 9 Axis IMU AHRS Module - SPI, Serial

• Module size: 15.5mm * 15.5mm
• Communication: 1 serial port (9600,115200), 2.SPI communication (4-wire)
• Power supply: 3v-5v 15ma
• Output update frequency: 200HZ
• Resolution: 0.1 degree
• Direct output: Euler angles (PITCH ROLL YAW)
• Direct output: 9-axis sensor raw data (triaxial accelerometer, three-axis gyroscope, three-axis magnetometer)
• Direct output: The output of the four elements

How to Use GY-953 9 Axis IMU AHRS Module - SPI, Serial

1. Connect the module using the serial port or SPI interface.
2. Apply a 3v-5v power supply.
3. Read the output data at the available update rate.

More Info

• Designed for motion, orientation, and angle output.
• Includes acceleration, gyroscope, and compass-related outputs.
