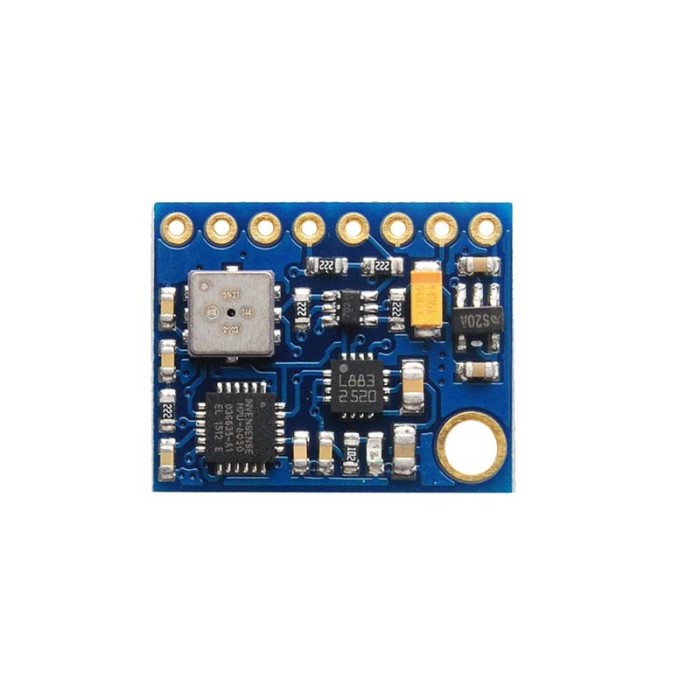

GY-88 10DOF IMU MPU6050 HMC5983L BMP180 Module
$15.5000
In stock
SKU
SEN-18-029
Volume discounts:
- +25 4 % $14.8900
- +50 6 % $14.5800
- +100 8 % $14.2700
- +300 10 % $13.9700
- +500 12 % $13.6600
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
The GY-88 10DOF IMU MPU6050 HMC5983L BMP180 Module combines motion sensing, orientation tracking, and barometric pressure measurement in one compact unit. It includes an MPU6050 accelerometer and gyroscope, an HMC5983 magnetometer, and a BMP180 barometric pressure sensor. The module uses I2C communication and supports a 3V ~ 5V operating voltage range. It is suited for electronics and robotics projects that need multi-sensor IMU data.
Features of GY-88 10DOF IMU MPU6050 HMC5983L BMP180 Module
- 10DOF IMU sensing
- MPU6050 motion sensor
- HMC5983 magnetometer
- BMP180 pressure sensor
- I2C communication
- 3V ~ 5V operation
Specifications of GY-88 10DOF IMU MPU6050 HMC5983L BMP180 Module
- MPU6050: Accelerometer and gyroscope with 16-bit ADCs
- Gyroscope range: ±250, ±500, ±1000, ±2000°/sec
- Accelerometer range: ±2g, ±4g, ±8g, ±16g
- HMC5983: Magnetometer
- Magnetic field range: ±8 Oe
- BMP180: Barometric pressure sensor
- Pressure range: 300 ~ 1100 hPa (+9000m to -500m above sea level)
- Gyroscope ADC resolution: 16-bit
- Accelerometer ADC resolution: 16-bit
- Magnetometer ADC resolution: 12-bit
- Communication: I2C interface
- Operating voltage: 3V ~ 5V
- Applications: Gesture control (TouchAnywhere™ and MotionCommand™ technologies)
- Applications: Motion-enabled gaming and 3D remote controls
- Applications: Wearable health and fitness sensors
- Applications: GPS navigation enhancement and dead reckoning
- Dimensions: ---
How to Use GY-88 10DOF IMU MPU6050 HMC5983L BMP180 Module
- Connect the module using the I2C interface.
- Supply power within the 3V ~ 5V operating voltage range.
- Read sensor data from the MPU6050, HMC5983, and BMP180.
More Info
- Datasheet: MPU6050
- Datasheet: HMC5983
- Datasheet: BMP180

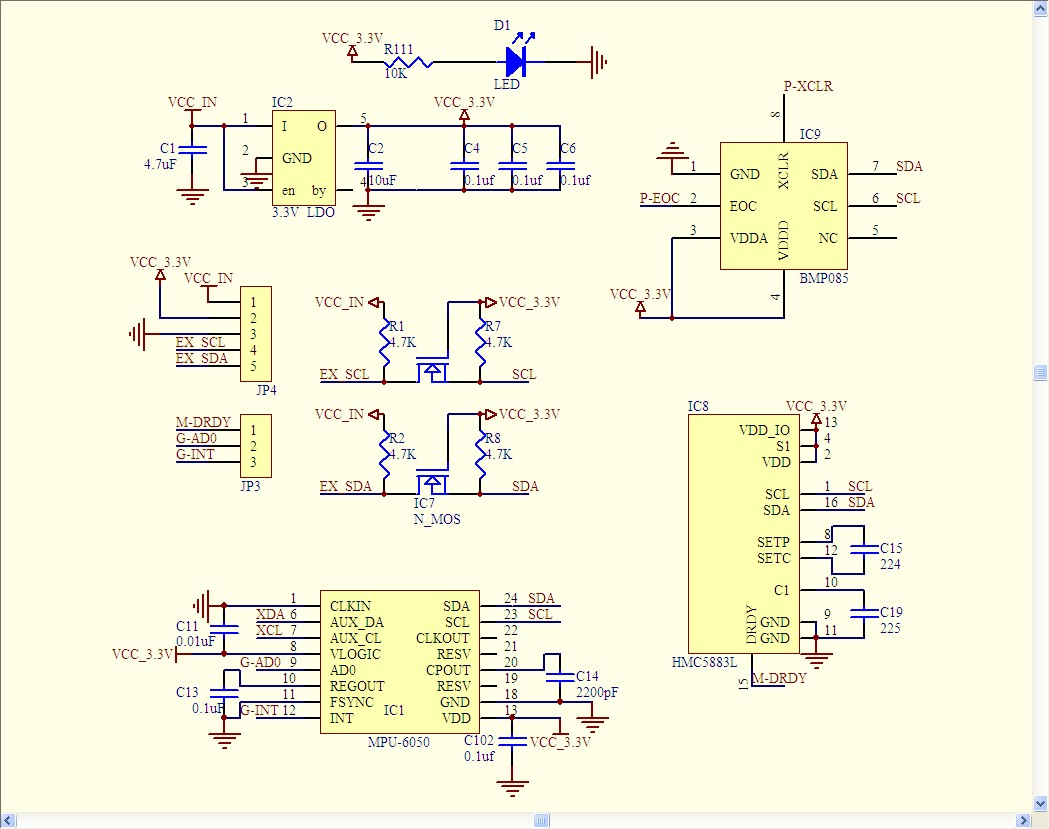

- Schematic: GY-88
| Interface Type | I2C |
|---|---|
| Operating Voltage (V) | 3V ~ 5V |
| Mounting Type | THT (Through Hole) |
| Output Type | I2C |
| Resolution | Gyroscope: 16-bit, Accelerometer: 16-bit, Magnetometer: 12-bit |
| Measurement Range | Magnetic field range: ±8 Oe, Pressure range: 300 ~ 1100 hPa |
| Number of Axes | 10-axis |
| Acceleration Range (g) | ±2g, ±4g, ±8g, ±16g |
| Gyro Range (dps) | ±250dps, ±500dps, ±1000dps, ±2000dps |
| Push Button | No |
| Sensor Type | IMU, AHRS, Barometric Pressure, Digital Compass, Accelerometer, Gyroscope |
| Protocols | I2C |
