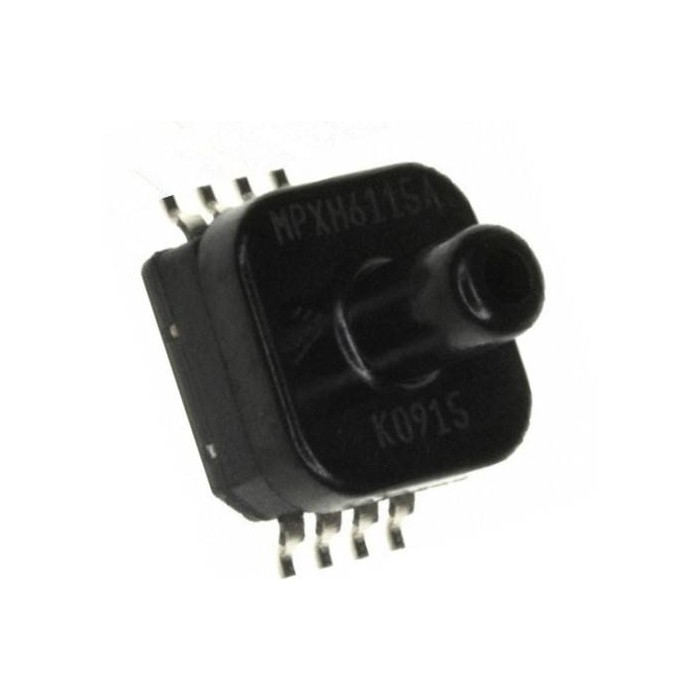

MPXH6115AC6U Absolute Pressure Sensor

MPXH6115AC6U Absolute Pressure Sensor is a barometric air pressure sensor with calibrated, temperature-compensated, and amplified output. It is designed for absolute pressure measurement in applications that require a compact SMD package and stable pressure sensing. The sensor provides a 0.2V to 4.8V output range and supports an operating pressure range from 15kPa to 115kPa. It is suitable for systems that need high temperature performance and precise pressure response.

This pressure sensor includes a small surface-mount package with an 8-pin configuration. It also offers resistance to high humidity and high-motion designs. The MPXH6115AC6U Absolute Pressure Sensor supports microcontroller and microprocessor systems and can be used in industrial control, weather stations, handheld barometers, and automotive manifold pressure control.

Features of MPXH6115AC6U Absolute Pressure Sensor

• Calibrated output
• Temperature compensated
• Amplified signal
• High humidity resistance
• Small surface-mount package
• Suitable for microcontroller systems
• Suitable for microprocessor systems

Specifications of MPXH6115AC6U Absolute Pressure Sensor

• Operating pressure minimum: 15kPa
• Operating pressure maximum: 115kPa
• Output voltage minimum: 0.2V
• Output voltage maximum: 4.8V
• Overpressure maximum: 400kPa
• Sensitivity: 45mV / kPa
• Mounting type: SMD
• Number of pins: 8
• Working voltage maximum: 5.25V
• Operating temperature minimum: -40°C
• Operating temperature maximum: +125°C
• Maximum error: 1.5%
• Error temperature range: 0 to 85°C
• Package material: Thermoplastic (PPS)

How to Use MPXH6115AC6U Absolute Pressure Sensor

1. Install the sensor in an SMD assembly.
2. Connect the 8 pins to the target circuit.
3. Read the output voltage within the specified pressure range.

More Info

• Barometric air pressure sensor
• Designed for absolute pressure measurement
