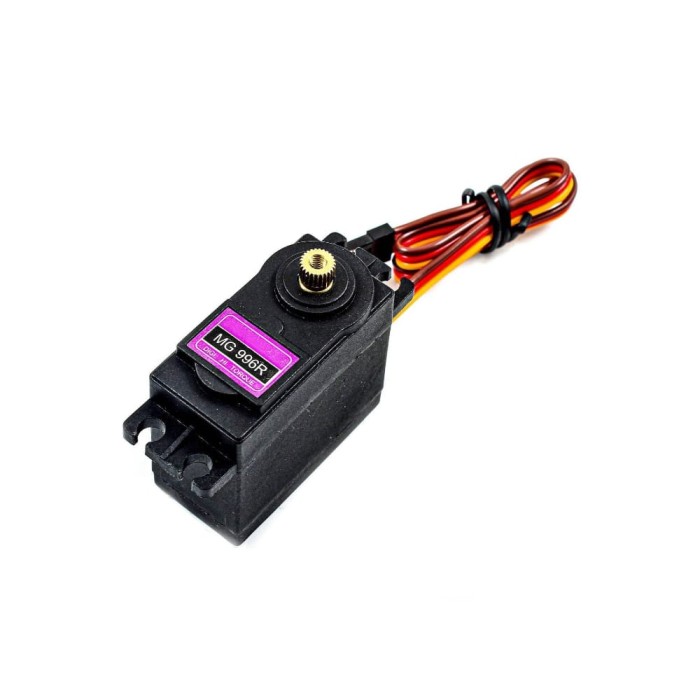

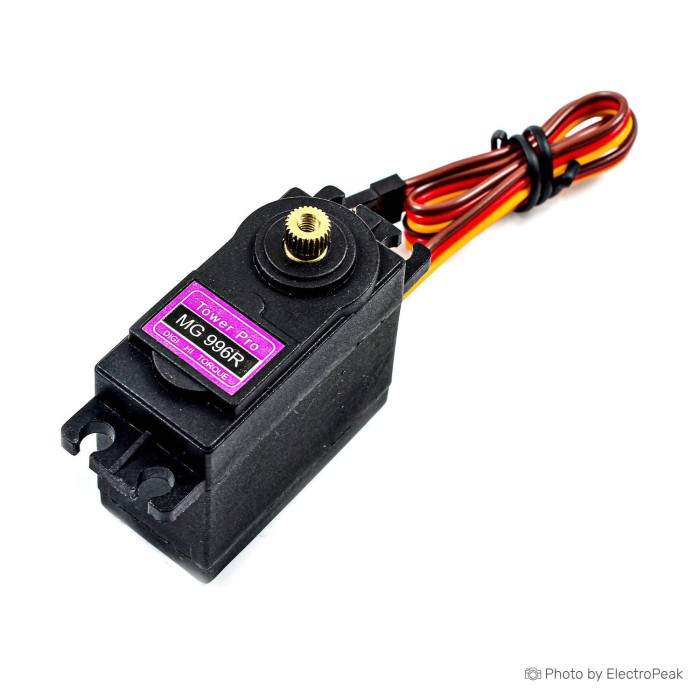

The MG996R High Torque Digital Servo is a versatile and powerful servo motor suitable for a wide range of robotics and RC projects. With its compact size and easy installation, this servo offers precise and responsive movement, making it ideal for various applications such as robotic arms and steering mechanisms. It has a high torque output of 11 kg/cm and a rotation speed of 0.17 seconds per 60 degrees, providing enough power and speed for most projects.
Equipped with a durable metal gear train and high-quality components, the MG996R High Torque Digital Servo offers reliable and long-lasting performance. It also has a wide operating voltage range of 4.8V to 7.2V, making it compatible with a variety of power sources. With its affordable price and versatile use, this servo is a top choice for all your motor control needs. Upgrade to the MG996R High Torque Digital Servo and take your projects to the next level.
Specification of MG996R High Torque Digital Servo
- Plastic Type: ABS
- Model Number: MG996R
- Gear type: Metal gears
- Stall torque: 12 kg/cm(6v)
- Power supply: via external adapter
- Operating voltage: 4.8-7.2V
- Temperature range: 0'c to 55lsquoc
- Operating speed: 0.17 sec/60 degrees (4.8V no load)
- Operating speed: 0.13 sec/60 degrees (6.0 V no load)
- Compliant with most standard receiver connector: futaba, hitec, sanwa, gws etc...
- Stable and shockproof.
- Connection cable: length 300mm
- Ideal for trucks, boats, racing cars, helicopters and airplanes
- All equipment: metal
- Rotation angle 90 ~ 180 degrees
- Connecting wire length: 300mm
- Package dimension: 54x38x20mm
- Net weight: 65g
- Package weight: 75g
- Color: Black
- 4 x servo (with accessories)
