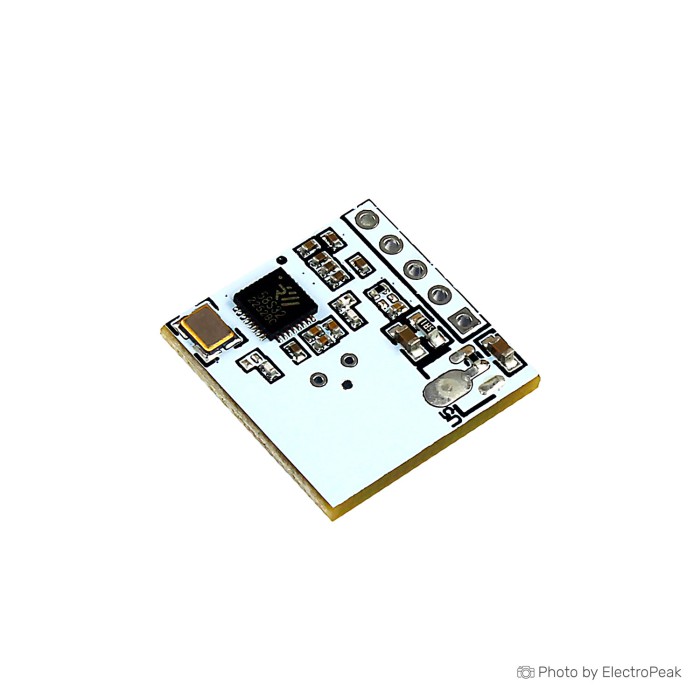

MG5818P 5.8GHz Radar Microwave Sensor Module
$2.2500
In stock
SKU
SEN-24-022
Volume discounts:
- +50 4 % $2.1600
- +100 6 % $2.1100
- +300 8 % $2.0600
- +500 10 % $2.0200
- +1000 12 % $1.9700
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
MG5850B 5.8GHz Radar Microwave Sensor Module Previous
MG5818P 5.8GHz Radar Microwave Sensor Module is a low-power microwave radar sensor module for real-time detection of moving objects. It converts microwave induction signals into high and low digital signals. The module operates with stable output and supports long-range sensing. It also offers high stability, high sensitivity, and strong resistance to interference. The sensor can penetrate glass and thin wood. A planar antenna is used for stable and reliable signal performance.
Features of MG5818P 5.8GHz Radar Microwave Sensor Module - 8m
- Real-time motion detection
- Low-power operation
- Long sensing distance
- Adjustable delay time
- Adjustable light intensity
- Strong anti-interference performance
- High stability and sensitivity
- Penetrates glass and thin wood
- Planar antenna design
Specifications of MG5818P 5.8GHz Radar Microwave Sensor Module - 8m
- Model: MG5818P
- Working Voltage: DC 4.5V to 12V
- Output Voltage: 5V
- Working Current: 38mA
- Transmission Frequency: 5800MHz
- Transmission Power: 0.5mW
- Stable Frequency: 5.8GHz ± 75MHz
- Sensing Distance: 8 meters
- Delay Time After Induction Trigger: 3 seconds
- Work Temperature: -30 to 85 °C
- Work Humidity: 5% to 95% RH
- Size: 20 x 20 x 2.5 mm
How to Use MG5818P 5.8GHz Radar Microwave Sensor Module - 8m
- Connect the module within the DC 4.5V to 12V working range.
- Use the output signal as a high and low digital signal.
- Adjust the delay time and light intensity as needed.
More Info
- Stable frequency is 5.8GHz ± 75MHz.
- Designed for interference-resistant operation.
- Suitable for compact installations with a 20 x 20 x 2.5 mm size.
| Operating Voltage (V) | 4.5V - 12V |
|---|---|
| Operating Current (mA) | 38 |
| Operating Temp (°C) | -30 to 85 |
| Dimensions (mm) | 20 x 20 x 2.5 mm |
| Output Type | Digital |
| Response Time | 3 seconds |
| Measurement Range | 8 meters |
| Sensor Type | Microwave Motion Detector |
| Measurement Principle | Doppler radar |
| Supply Current | mA |
| Chipset | MG5818P |
