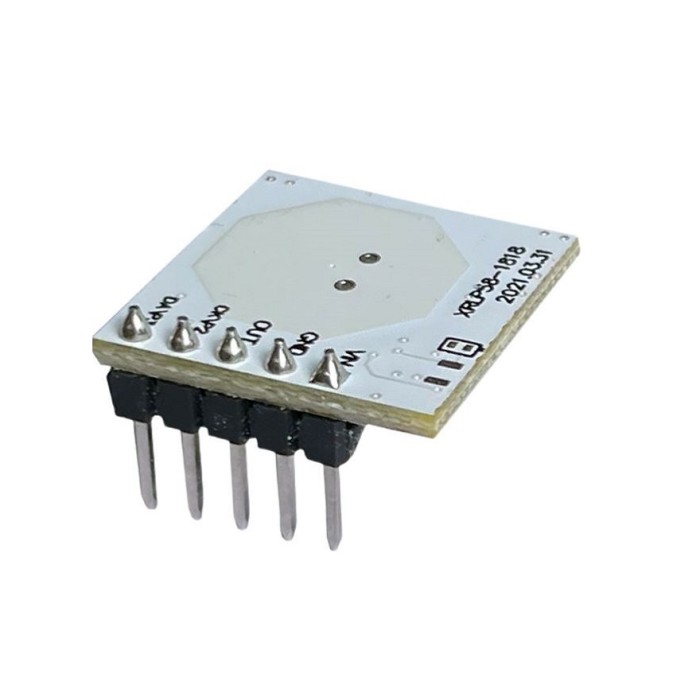

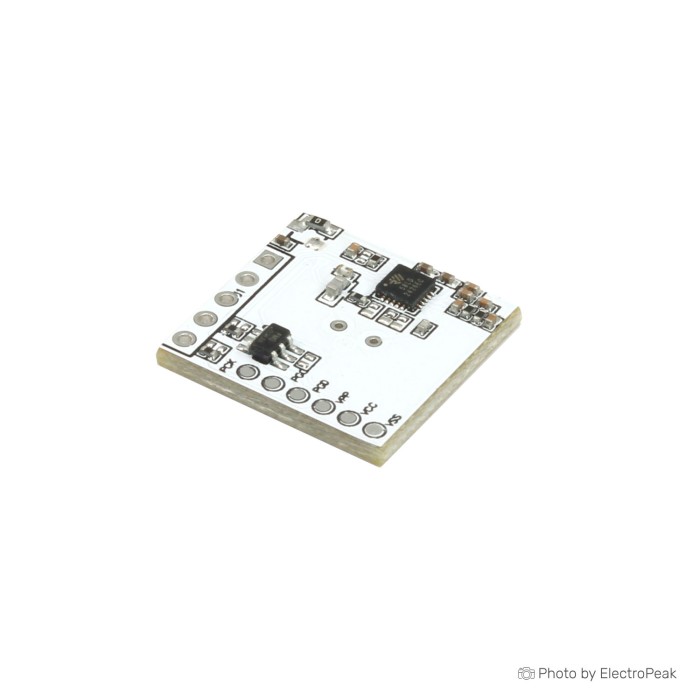

MG5850B 5.8GHz Radar Microwave Sensor Module
$1.7500
In stock
SKU
SEN-24-021
Volume discounts:
- +50 5 % $1.6700
- +100 7 % $1.6300
- +300 9 % $1.5900
- +500 11 % $1.5600
- +1000 13 % $1.5200
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
RCWL-0516 Microwave Radar Motion Detector Sensor Previous
MG5850B 5.8GHz Radar Microwave Sensor Module is a low-power radar sensor module for real-time moving object detection. It uses the Doppler effect and can convert microwave inductive signals into high and low signals or output PWM signals. The module supports light intensity sensing and offers adjustable sensing distance and delay time. It is designed for low-power electronics and sensor applications where stable detection is required.
With ultra-low working current and a compact form factor, this radar sensor module fits applications that need efficient operation and configurable sensing behavior. It provides a 3.3V output signal and operates across a wide voltage range. The module also supports multiple units working together without interference.
Features of MG5850B 5.8GHz Radar Microwave Sensor Module
- Ultra-low power consumption
- Doppler-based motion detection
- High and low signal output
- PWM output support
- Adjustable sensing distance
- Adjustable delay time
- Strong anti-interference performance
- Light intensity sensing
Specifications of MG5850B 5.8GHz Radar Microwave Sensor Module
- Working Voltage: 2.8V-5.5V DC
- Output Single: 3.3V
- Sensing Distance: 12 meters
- Transmit Frequency: 5800MHz
- Transmit power: 0.2-0.5mW
- Output High Level: 3.3V
- Output Low Level: 0V
- Working Current: 68uA
- Delay Time: 3S
- Photosensitive Threshold: 10Lux
- Work Temperature: -30 ~ 85 ℃
- Work Humidity: 5%~95% RH
- Size: 18*18*2.5mm
How to Use MG5850B 5.8GHz Radar Microwave Sensor Module
- Connect the module within the specified working voltage range.
- Read the output as a 3.3V high level or 0V low level, or use PWM output.
- Adjust the sensing distance and delay time through the serial port assistant if needed.
More Info
- Multiple modules can operate at the same time without interfering with each other.
- The module supports real-time detection of moving objects.
- It has a compact size of 18*18*2.5mm.
| Operating Voltage (V) | 2.8V-5.5V DC |
|---|---|
| Operating Current (mA) | 68 |
| Operating Temp (°C) | -30 ~ 85 ℃ |
| Dimensions (mm) | 18*18*2.5mm |
| Output Type | Digital |
| Response Time | 3 seconds |
| Measurement Range | 12 meters |
| Push Button | No |
| Sensor Type | Microwave Motion Detector |
| Measurement Principle | Doppler radar |
| Supply Current | uA |
| Chipset | MG5850B |
