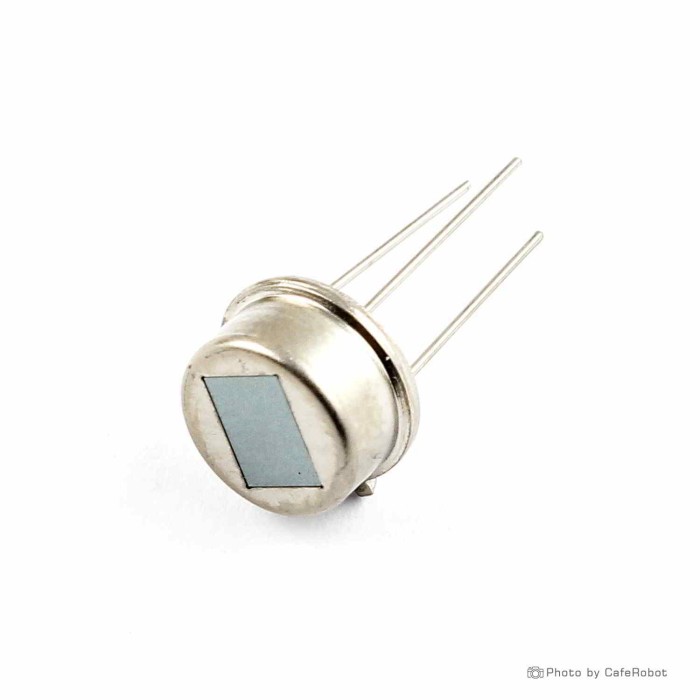

D203B PIR Motion Sensor
$0.2000
In stock
SKU
SEN-24-017
Volume discounts:
- +100 5 % $0.1900
- +1000 10 % $0.1800
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
MG5818P 5.8GHz Radar Microwave Sensor Module Previous
The D203B PIR Motion Sensor is a PIR infrared radial sensor for motion and radiant heat detection. It uses dual compensated sensing to suppress interference caused by temperature variation. The sensor is sensitive to wavelengths from 5 to 14 micrometers. It supports a 3 to 15V DC operating voltage and a 120-degree detection angle. With compact 9x4.7 mm dimensions, it is suitable for security systems, automatic lighting, welcome systems, smart devices, and building automation.
Features of D203B PIR Motion Sensor
- PIR motion and radiant heat detection
- Dual compensated sensing
- Temperature variation interference suppression
- 5 to 14 micrometer sensitivity
- 120-degree detection angle
Specifications of D203B PIR Motion Sensor
- Sensor type: PIR
- Detection: Motion and radiant heat
- Wavelength sensitivity: 5 to 14 micrometers
- Operating voltage: 3 to 15V DC
- Detection angle: 120 degrees
- Dimensions: 9x4.7 mm
How to Use D203B PIR Motion Sensor
- Install the sensor in the target detection area.
- Connect it to a 3 to 15V DC power source.
- Use the output in your motion detection or automation circuit.
More Info
- Large field-of-view detection
- Effective resistance to environmental changes and stray light
| Interface Type | Analog |
|---|---|
| Operating Voltage (V) | 3 to 15V DC |
| Dimensions (mm) | 9x4.7 mm |
| Mounting Type | THT (Through Hole) |
| Output Type | Analog |
| Accuracy | High accuracy and sensitivity |
| Measurement Range | 5 to 14 micrometers |
| Push Button | No |
| Sensor Type | PIR |
| Measurement Principle | Infrared |
| Chipset | D203B |
| Detection Angle (°) | 120 degrees |
