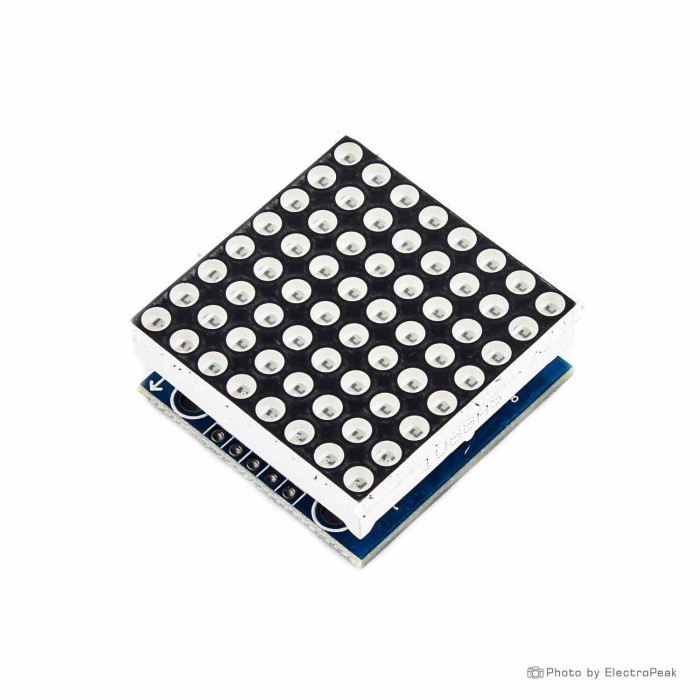

MAX7219 Dot Matrix LED Display Module
SAVE
As low as $0.8000
In stock
Only %1 left
SKU
LCD-01-275
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Raspberry Pi Monitor 15.6-Inch FullHD IPS Previous
Description:
LED screens or Light-Emitting Diodes have been in the market for a long time and they have better color quality, more brightness and less battery consumption than LCD screens. This led display module is an 8 x 8 matrix of LEDs, which is very suitable for displaying a numerical or alphabetic character. The communication port of this screen is of SPI type, which is very easy to use, and data is sent through 3 pins, and it can work in the temperature range of 0 to 50 degrees.
The setup of this matrix LED module is done using the MAX7219 driver chip, which is an 8-bit IC and requires a voltage of 4 to 5.5 volts to turn on.
LED display modules are used in many applications, such as making all kinds of electronic display panels.
Specification :
- Operating voltage: 4.7 to 5.3 V DC
- Typical voltage: 5V
- Operating current: 320 mA
- Maximum operating current: 2 amps
- Operating temperature: 0 to 50 degrees Celsius
| Model | MAX7219 |
|---|---|
| Platform | Arduino Mega, Arduino Uno, Arduino Nano, Raspberry Pi 3, Raspberry Pi 4, Raspberry Pi 5 |
| Display Size | 8x8 |
| Display Size Range | 1 inch to 1.99 inch |
| Display Resolution | 8x8 |
| Display Driver | MAX7219 |
| Display Interface | SPI |
| Panle Type | Common Cathode |
| Display Color Type | Monochrome |
| Touchscreen Type | None |
| Backlight Type | LED |
| Operating Temp (°C) | 0 to 50 °C |
| Operating Voltage (V) | 5V |
| Pins | 3 |
| Operating Current (mA) | 320 mAnMaximum operating current: 2 A |
