0802 8x2 5V Character LCD Display Module
SAVE
As low as $1.1200
In stock
Only %1 left
SKU
LCD-01-127
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
MAX7219 Dot Matrix LED Display Module Previous

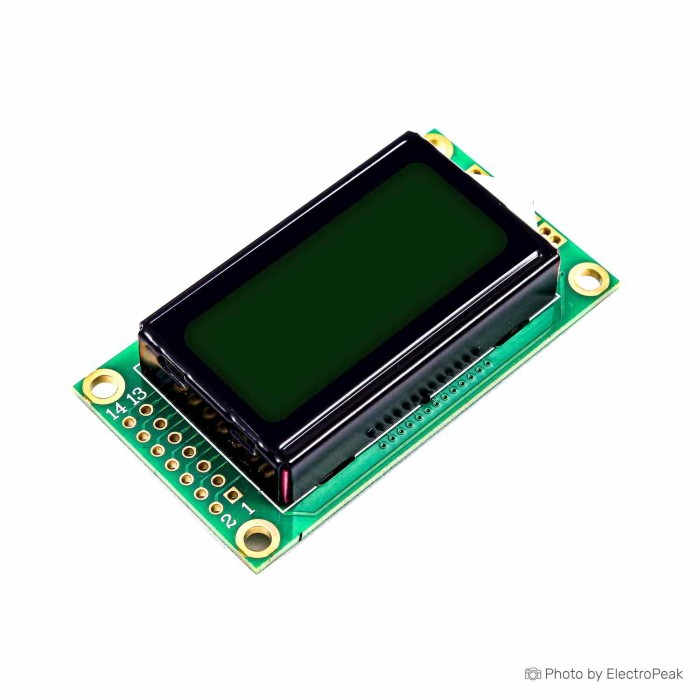

0802 8x2 Character LCD Display Module is a character display module for text and alphanumeric output. It provides an 8x2 format with 8 characters and 2 lines. The module includes a selectable blue/green backlight and does not include LED backlight options. It uses an s6A0069 controller. The display module supports 3.3V to 5V DC supply and is designed for character-based LCD applications. The module dimensions, display area, and mounting size are listed below for integration planning.
Features of 0802 8x2 Character LCD Display Module
- 8x2 character format
- Selectable blue/green backlight
- s6A0069 controller
- 3.3V to 5V DC supply
- Compact character display module
- No LED backlight option
Specifications of 0802 8x2 Character LCD Display Module
- Display format: 8x2
- Module dimensions: 58x32x10 mm
- Active display area: 37.8x16 mm
- Mounting size: 53x28 mm
- Character size: 2.96x5.56 mm
- Backlight color: Blue/Green (selectable)
- Controller: s6A0069
- Supply voltage: 3.3 to 5V DC
- Operating temperature: -30 to 70°C
- Weight: 50 g
How to Use 0802 8x2 Character LCD Display Module
- Connect the module to a compatible control circuit.
- Apply a 3.3V to 5V DC supply.
- Set the desired text output through the controller.
More Info
- The display is intended for text and character presentation.
- Backlight color is selectable between blue and green.
| Model | 802 |
|---|---|
| Platform | Arduino Mega, Arduino Uno, Arduino Nano, Raspberry Pi 3, Raspberry Pi 4, Raspberry Pi 5 |
| Display Size Range | 1 inch to 1.99 inch |
| Display Resolution | 8x2 |
| Display Driver | ST7066, s6A0069 |
| Display Interface | Parallel |
| Display Color Type | Red, Green, Blue, White (Selective) |
| Touchscreen Type | None |
| Backlight Type | None |
| Operating Temp (°C) | -30 to +70 |
| Operating Voltage (V) | 3.3V - 5V DC |
| Dimensions (mm) | 58x32x10 mm |
