YwRobot LM35 Linear Temperature Sensor Module
$0.0000
Out of stock
SKU
SEN-10-036
Shop with confidence Learn More
SHT10 Digital Humidity Temperature Sensor Previous

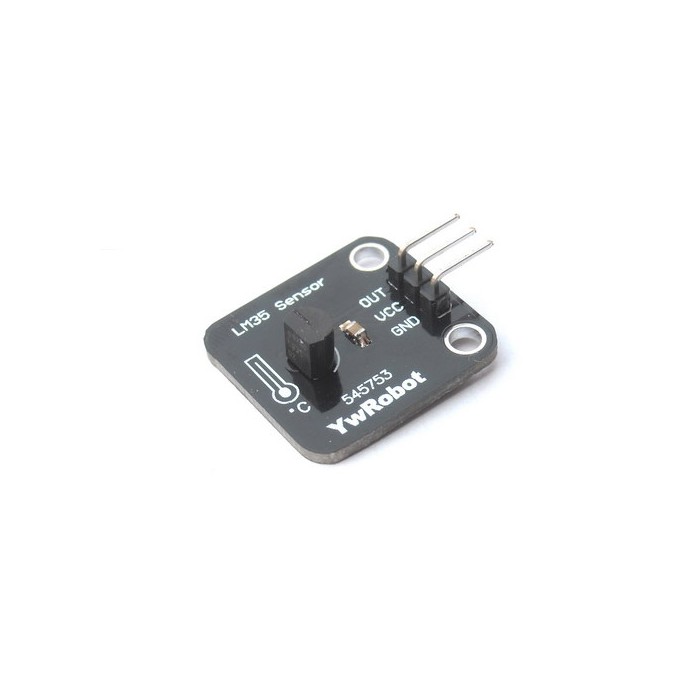

YwRobot LM35 Linear Temperature Sensor Module is a temperature sensor module with LM35 and an analog linear voltage output. It is designed for temperature measurement with a 5V power supply and a 10.0mV/°C sensitivity. The module uses the LM35D chip and provides an analog voltage signal that changes linearly with temperature. It supports the -50 ℃ to +150 ℃ temperature range. This module is suitable for Arduino and microcontroller projects.
Features of YwRobot LM35 Linear Temperature Sensor Module - 5V, 10mV/°C
- LM35 temperature sensor module
- Analog linear voltage output
- 5V supply voltage
- 10.0mV/°C sensitivity
- LM35D chip
- Arduino and microcontroller platform support
Specifications of YwRobot LM35 Linear Temperature Sensor Module - 5V, 10mV/°C
- Dimensions: 23 * 20mm
- Weight: 4g
- Chip: LM35D
- Voltage: 5V
- Output: Analog linear voltage
- Temperature range: -50 ℃ - +150 ℃
- Sensitivity: 10.0mV / ℃
- Platform: Arduino, microcontroller
How to Use YwRobot LM35 Linear Temperature Sensor Module - 5V, 10mV/°C
- Connect the module to a 5V supply.
- Read the analog output voltage.
- Use the voltage change to measure temperature.
More Info
- This product is a component, not a finished device.
- The output voltage changes linearly with temperature.
| Interface Type | Analog |
|---|---|
| Operating Voltage (V) | 5V |
| Operating Temp (°C) | -50 to +150 °C |
| Dimensions (mm) | 23 * 20mm |
| Mounting Type | Screw holes |
| IP Rating | None |
| Output Type | Analog Voltage |
| Resolution | 10.0mV / ℃ |
| Measurement Range | -50 to +150 °C |
| Environmental Parameter | Temperature |
| Weight (g) | 4 |
| Chipset | LM35D |
| Relay Output | No |
| Temp Accuracy | 10.0mV / ℃ |
