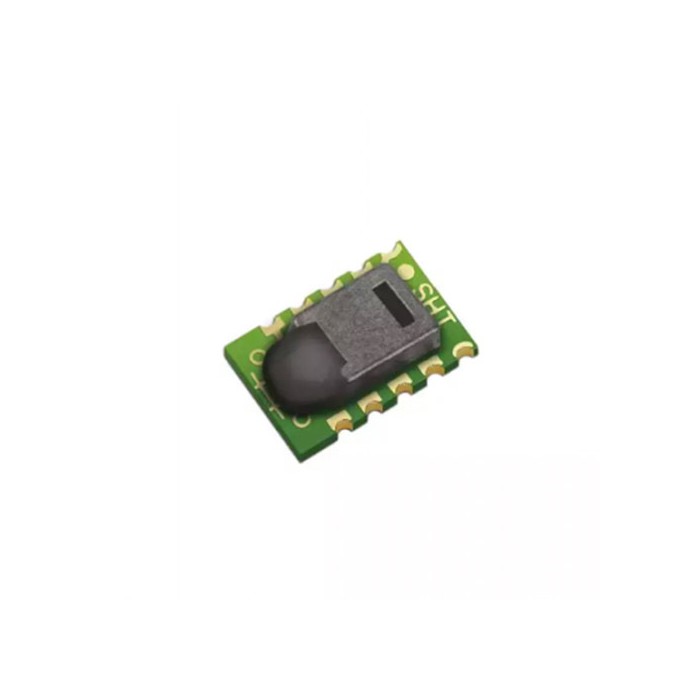

SHT10 Digital Humidity Temperature Sensor

The SHT10 Digital Humidity Temperature Sensor is a single-chip sensor for relative humidity and temperature measurement. It provides a fully calibrated digital output and uses a two-wire digital interface for simple system integration. The sensor is designed for high reliability, long-term stability, and low power operation. It also supports accurate dew point measurement and is individually calibrated.

Features of SHT10 Digital Humidity Temperature Sensor

• Relative humidity measurement
• Temperature measurement
• Fully calibrated digital output
• Two-wire digital interface
• High reliability
• Long-term stability
• Low power consumption
• Accurate dew point measurement

Specifications of SHT10 Digital Humidity Temperature Sensor

• Voltage: 2.4 V ~ 5.5 V
• Temperature resolution: 14 bit
• Temperature resolution: 0.01 °C
• Humidity resolution: 12 bit
• Humidity resolution: 0.05 %RH
• Temperature measurement range: -40 - 123.8 °C
• Humidity measurement range: 0 - 100 %RH
• Humidity sensitivity: ±4.5 %RH
• Temperature sensitivity: ±0.5 °C
• Operating temperature: -40°C ~ 123°C
• Availability time: 8s
• Power consumption: 80µW
• Power consumption condition: 12-bit, 3V, 1 measurement / condition
• Temperature range: -40 - 125 °C
• Temperature range: -40 - 257 °F
• Humidity working range: 0 - 100% RH
• Humidity response time: 8 seconds (tau63%)

How to Use SHT10 Digital Humidity Temperature Sensor

1. Connect the sensor to a system with the supported voltage range.
2. Use the two-wire digital interface for data communication.
3. Read the digital output for humidity and temperature values.

More Info

• Individually calibrated in a precision humidity chamber.
• Calibration coefficients are programmed in OTP memory.
• Built-in voltage regulation supports easier system integration.
