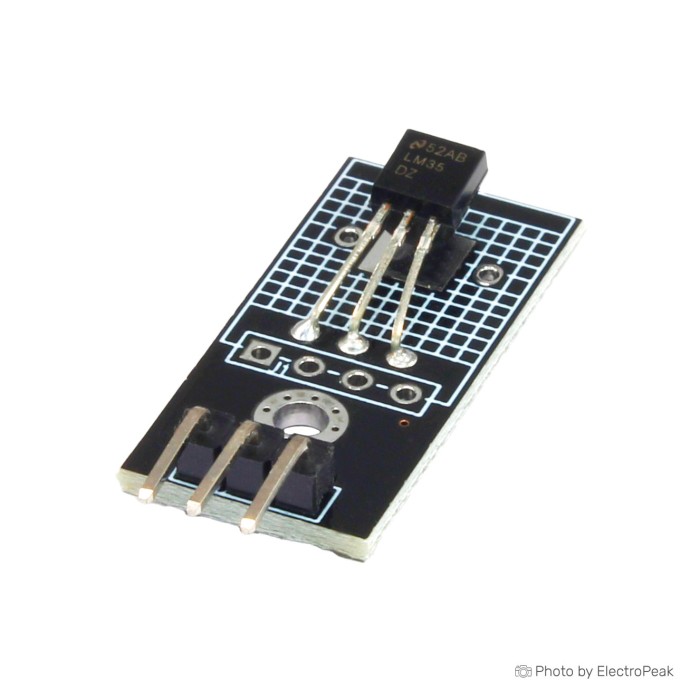

LM35 Analog Temperature Sensor Module
$0.7500
In stock
SKU
SEN-10-101
Volume discounts:
- +50 4 % $0.7200
- +100 7 % $0.7000
- +300 8 % $0.6900
- +500 11 % $0.6700
- +1000 12 % $0.6600
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
KY-013 Analog Temperature Sensor Module Previous
LM35 Analog Temperature Sensor Module is a precision linear temperature sensing module based on the LM35 semiconductor temperature sensor. It provides an analog output voltage proportional to temperature in degrees Celsius. The module is calibrated directly in Celsius and is suitable for ambient air temperature measurement. Its low power consumption and low output impedance make it practical for electronics, robotics, and industrial temperature monitoring. The LM35 Analog Temperature Sensor Module also includes a screw-hole mounting feature for installation.
Features of LM35 Analog Temperature Sensor Module - 4V To 20V
- Precision linear temperature sensing
- Analog output proportional to temperature
- Direct Celsius calibration
- 10 mV/°C sensitivity
- Low power consumption
- Low output impedance
- Screw-hole mounting
Specifications of LM35 Analog Temperature Sensor Module - 4V To 20V
- Operating temperature range: -55 to 150 degrees Celsius
- Sensitivity: 10 millivolts per degree Celsius
- Accuracy: ±0.5°C at 25 degrees Celsius
- Power consumption: less than 60 microamps
- Output impedance: 0.1 ohm for 1 milliampere current
- Mounting hole diameter: 2.6 millimeters
- Supply voltage: 4 to 20 volts
How to Use LM35 Analog Temperature Sensor Module - 4V To 20V
- Connect the positive pin to the power supply.
- Connect the negative pin to GND.
- Connect the OUT pin to an ADC analog input or a multimeter.
More Info
- Output voltage varies with temperature.
- Suitable for ambient air temperature measurement.
- Commonly used in electronics and industrial measurement tasks.
| Interface Type | Analog |
|---|---|
| Operating Voltage (V) | 4 to 20V |
| Operating Current (mA) | less than 60uA |
| Operating Temp (°C) | -55 to 150°C |
| Mounting Type | Screw holes |
| Output Type | Analog Voltage |
| Accuracy | ±0.5°C at 25°C |
| Resolution | 10 mV/°C |
| Measurement Range | -55°C to 150°C |
| Environmental Parameter | Temperature |
| Probe Type | Contact |
| Chipset | LM35 |
| Relay Output | No |
| Temp Accuracy | ±0.5°C at 25°C |
