MAX17043 Lithium Battery Electricity Detection and Alarm Module - AD Conversion, I2C Interface

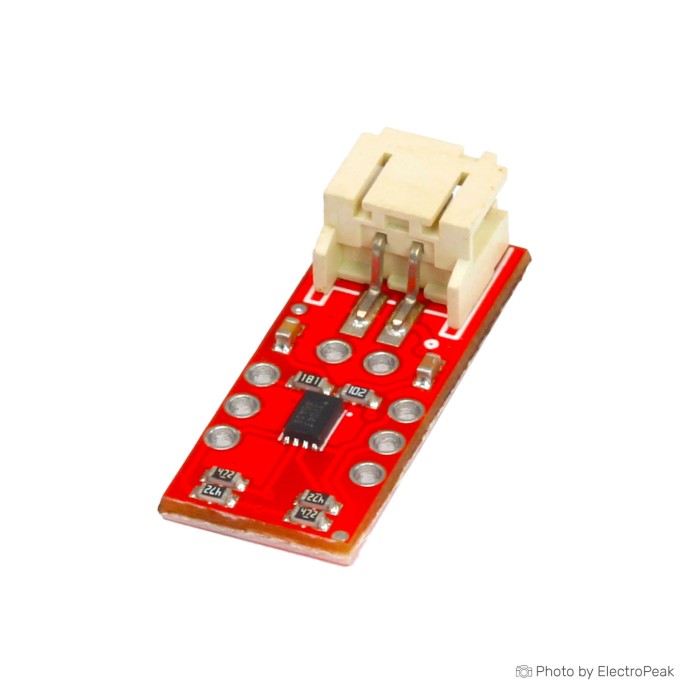

MAX17043 Lithium Battery Monitoring Module provides battery state monitoring for a single-cell lithium polymer battery. It uses an A/D converter and an I2C interface to send battery information to a control circuit. The module also includes an alert pin that goes low when the battery voltage drops to a set level. Hardware reset and software reset are supported. It is designed as a gauge system for monitoring charge status and battery voltage.

Features of MAX17043 Lithium Battery Monitoring Module - A/D, I2C, 3.5-5V

• A/D conversion
• I2C interface
• Alert pin output
• Hardware reset support
• Software reset support
• Single-cell lithium polymer battery gauge

Specifications of MAX17043 Lithium Battery Monitoring Module - A/D, I2C, 3.5-5V

• Chip: MAX17043
• Operating voltage: 3.5-5V DC
• Battery type: Single-cell lithium polymer battery
• Monitoring: Parallel connection and battery status monitoring
• Size: 10x24 mm
• Color: Red
• Interface: I2C
• Converter: A/D

How to Use MAX17043 Lithium Battery Monitoring Module - A/D, I2C, 3.5-5V

1. Connect the module to the battery circuit.
2. Link the I2C lines to the control circuit.
3. Read the battery status and alert output from the system.

More Info

• Suitable for monitoring battery charge status.
• Provides battery voltage information to the microcontroller.
