KWS-MX18 10-in-1 USB Digital Display Tester - Current Voltage Meter
$4.5000
In stock
SKU
BAT-03-031
Volume discounts:
- +25 4 % $4.3300
- +100 6 % $4.2400
- +300 8 % $4.1600
- +500 10 % $4.0700
- +1000 12 % $3.9800
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
MAX17043 Lithium Battery Electricity Detection and Alarm Module - AD Conversion, I2C Interface Previous

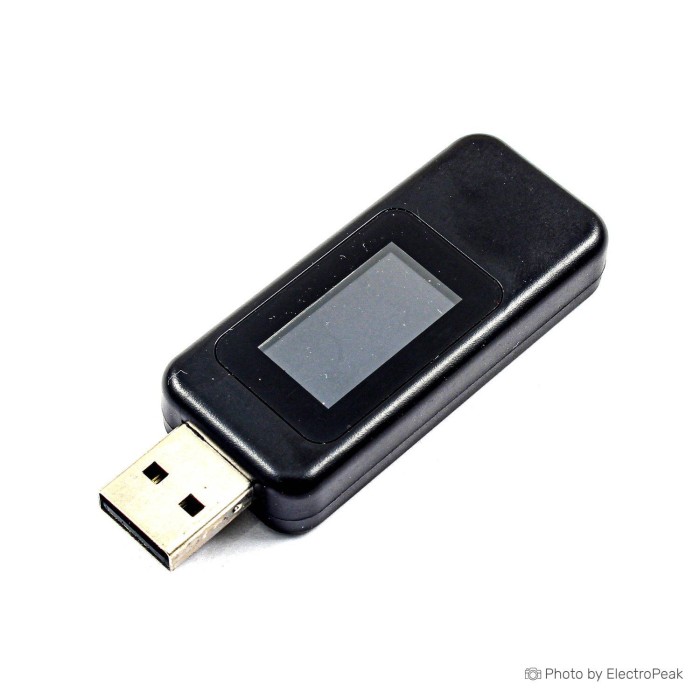

KWS-MX18 USB Digital Display Tester measures current, voltage, and charging status on a single LCD screen. It is designed for direct USB measurement and display of DC voltage and current. The tester includes a USB Type-A male plug and two USB Type-A female sockets. It can show charging information in real time while connected in line with the charging path. The unit also includes smart memory for storing charging data from up to 9 previous sessions, even after power loss.
Features of KWS-MX18 USB Digital Display Tester
- Current, voltage, and capacity display
- USB Type-A male and dual female sockets
- Real-time charging status display
- 9-group power-off memory
- Automatic voltage calibration at startup
- Manual voltage calibration support
Specifications of KWS-MX18 USB Digital Display Tester
- Material: ABS plastic
- Color: Black
- Output current: 0 to 5A
- Input voltage: 4 to 30V
- Timing: 0 to 99 hours
- Power: 0 to 150W
- Display capacity: 0 to 999999mAh
- Internal temperature: 0 to 80 degrees Celsius
- Charging resistance: 0 to 999.9 ohm
- Size: 56.6x24.7x11.2mm
- Weight: 13.9g
How to Use KWS-MX18 USB Digital Display Tester
- Connect the tester in line with the USB charging connection.
- Read voltage, current, and charging data on the display.
- Use the button to view stored groups 1 to 9.
- Hold the button for 3 seconds to clear a memory group.
- Double-press the button to change the display mode.
- Hold the button while plugging in USB to calibrate the module voltage.
More Info
- Stores charging data for up to 9 sessions after power off.
- Designed for USB power charging monitoring.
- Measures DC voltage and current through USB.
| Weight (g) | 13.9 |
|---|
