XH-M601 Battery Charging Control Module - 12V
$0.8100
In stock
SKU
BAT-03-035
Volume discounts:
- +50 2 % $0.7900
- +100 4 % $0.7800
- +500 5 % $0.7700
- +1000 6 % $0.7600
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
KWS-MX18 10-in-1 USB Digital Display Tester - Current Voltage Meter Previous

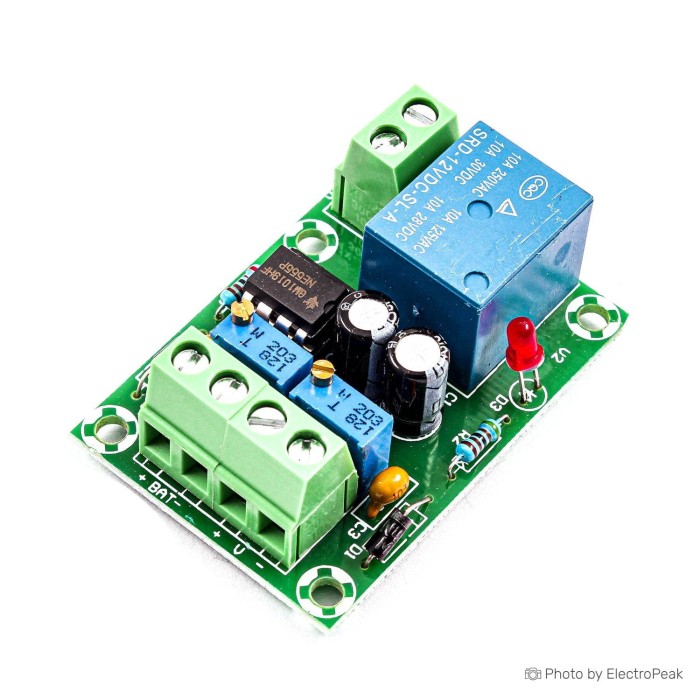

The XH-M601 Battery Charging Control Module is a 12V charging control board for lead acid battery systems. It provides charging control through adjustable relay voltage settings. The module uses a DC voltmeter for voltage detection. It is designed for 12V battery charging type applications and includes RP1 and RP2 potentiometer adjustment. The size is 50x35x18 mm.
Features of XH-M601 Battery Charging Control Module - 12V
- 12V battery charging control
- Adjustable relay start voltage
- Adjustable relay disconnect voltage
- DC voltmeter detection
- RP1 and RP2 adjustment
- Lead acid battery support
Specifications of XH-M601 Battery Charging Control Module - 12V
- Model: XH-M601
- Name: 12V charger power control board
- Power Supply: 13.8V-14.8V
- Relay working voltage: 12.4V
- Relay disconnect voltage: 14.8V
- Voltage tolerance: +/-0.1V
- Voltage error: ±0.1V
- Voltage detection: DC voltmeter
- Charging type: 12V battery
- Potentiometer adjustment: RP1 RP2 (carefully adjusted)
- Size: 50*35*18mm
How to Use XH-M601 Battery Charging Control Module - 12V
- Adjust RP1 to set the battery start charging voltage.
- Adjust RP2 to set the battery disconnect charging voltage.
- Connect the power supply, battery terminals, charger, and voltmeter according to the wiring diagram.
More Info
- Suitable for lead acid batteries.
- RP1 increases the setting when turned clockwise.
- RP2 increases the setting when turned clockwise.
| Compatible With | Lead Acid Battery |
|---|---|
| Function | Battery Charging Control |
| Charging Voltage (Pack) | 13.8V-14.8V |
| Supported Battery Type | 12V Battery |
| Overcharge Detection Voltage (per Cell) | 14.8V |
| Over-discharge Detection Voltage (per Cell) | 12.4V |
| Input Voltage (V) | 13.8V-14.8V |
| Output Voltage (V) | 12V |
| Connector | Terminal Block |
| Max Charging Current | 2A |
| Dimensions (mm) | 50 x 35 x 18 mm |
| Mounting Type | Screw holes |
