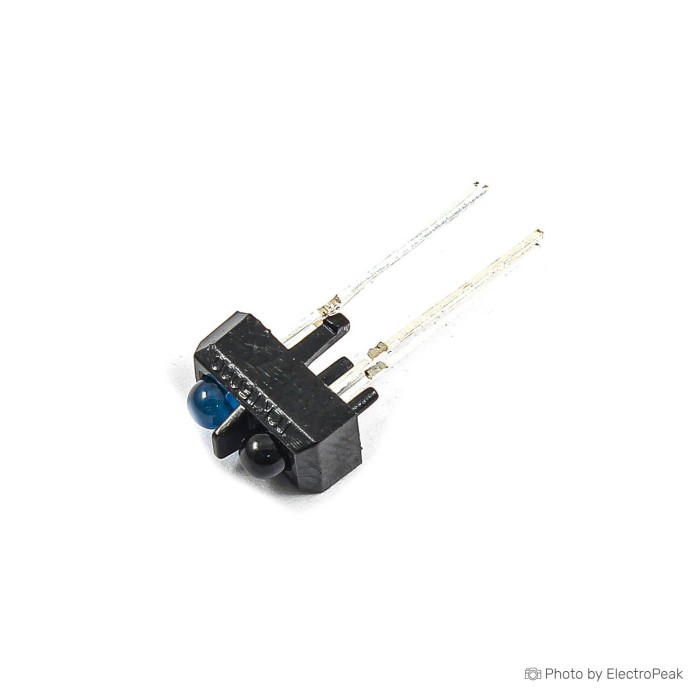

TCRT5000 Reflective Infrared Sensor Photoelectric Switch
$0.0950
In stock
SKU
SEN-19-010
Volume discounts:
- +100 4 % $0.0910
- +500 6 % $0.0890
- +1000 8 % $0.0870
- +5000 11 % $0.0850
- +10000 13 % $0.0830
TCRT5000 Reflective Infrared Sensor Photoelectric Switch is available to buy in increments of 5
Product Variations: View out of stock variants
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
SR602 Infrared Motion Detection Sensor Module Previous
The TCRT5000 Reflective Infrared Sensor Photoelectric Switch is a reflective IR sensor for detecting surfaces by using emitted infrared light. It combines an infrared emitter and a phototransistor in a leaded package. The sensor blocks visible light and is sensitive to the emitted IR wavelength. It is designed for reflective surface detection and line-tracking applications. The TCRT5000 Reflective Infrared Sensor Photoelectric Switch is a compact electronic component for robotics and DIY projects.
Features of TCRT5000 Reflective Infrared Sensor Photoelectric Switch
- Reflective infrared sensing
- Phototransistor detector
- Infrared emitter included
- Daylight blocking filter
- Lead package
- Line-tracking support
Specifications of TCRT5000 Reflective Infrared Sensor Photoelectric Switch
- Type: Phototransistor TCRT5000
- Voltage: 1.5 V DC
- Size: 10x5.5 mm
- Maximum detection distance: 2.5 mm
- Wavelength: 950 nm
- Package: Dual package
- Dimensions (L x W x H): 10.2 x 5.8 x 7 mm
- Peak operating distance: 2.5 mm
- Operating range within > 20 % relative
- Collector current: 0.2 mm to 15 mm
- Typical output current under test: IC = 1 mA
- Lead (Pb)-free soldering released
How to Use TCRT5000 Reflective Infrared Sensor Photoelectric Switch
- Install the sensor in the target circuit or project.
- Position the sensor near the reflective surface to be detected.
- Use the output change for detection or line-tracking logic.
More Info
- Suitable for reflective surface detection.
- Commonly used in robotics and DIY electronics.
| Interface Type | Analog |
|---|---|
| Operating Voltage (V) | 1.5V |
| Dimensions (mm) | 10.2 x 5.8 x 7 mm |
| Mounting Type | THT (Through Hole) |
| Output Type | Phototransistor |
| Detection Distance | 2.5 mm |
| Sensing Method | Infrared (IR) |
| Chipset | TCRT5000 |
| Max Output (A) | 1 mA |
| Channels | 1-channel |
| Sensor Model | TCRT5000 |
