5mm Infrared Receuver
$0.0220
In stock
SKU
COM-06-020
Volume discounts:
- +500 5 % $0.0210
- +1000 9 % $0.0200
- +10000 14 % $0.0190
5mm Infrared Receuver is available to buy in increments of 20
Product Variations:
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
3mm Infrared Receiver Previous

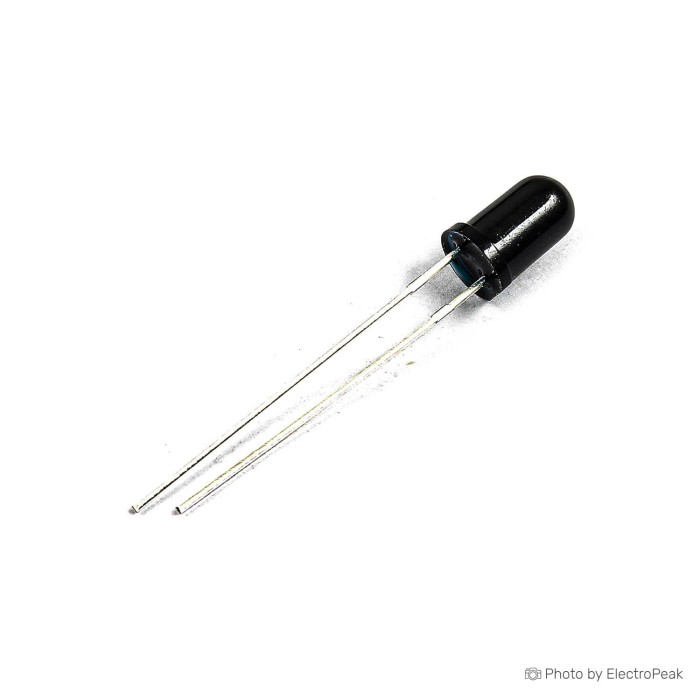

The 5mm Infrared Receiver Sensor is a compact electronics component for detecting infrared signals at 940nm. It uses a silicon NPN phototransistor and is designed for infrared signal reception and surface color detection. This infrared sensor is suitable for Arduino projects, line-following robots, fire-fighting robots, and DIY electronics. Its 2-pin design supports simple wiring in compact builds. The package includes 10 sensors.
Features of 5mm Infrared Receiver Sensor - 940nm, 1.2-1.4V DC
- 940nm infrared detection
- Silicon NPN phototransistor
- 2-pin connection
- Surface color detection
- Compact 5mm size
- Package of 10 sensors
Specifications of 5mm Infrared Receiver Sensor - 940nm, 1.2-1.4V DC
- Number of pins: 2
- Diameter: 5mm
- Thickness: 7mm
- Lens color: Transparent
- Operating voltage: 1.2-1.4V DC
- Operating current: Max 100mA
- Wavelength: 940nm
- Polarity: Longer pin is positive, shorter pin is negative
- Weight: 17g
- Package includes: 10 sensors
How to Use 5mm Infrared Receiver Sensor - 940nm, 1.2-1.4V DC
- Identify the longer and shorter pins.
- Connect the sensor according to the polarity.
- Use the sensor in your infrared detection circuit.
More Info
- Infrared colour: Infrared
- Size: 5mm
- Lens color: Black
| Operating Voltage (V) | 1.2–1.4V DC |
|---|---|
| Operating Current (mA) | Max 100mA |
| Dimensions (mm) | Diameter: 5mm, Thickness: 7mm |
| Mounting Type | THT (Through Hole) |
| Output Type | Phototransistor |
| Sensing Method | Infrared (IR) |
| Weight (g) | 17g |
