SR602 Infrared Motion Detection Sensor Module
$0.6500
In stock
SKU
SEN-24-013
Volume discounts:
- +50 5 % $0.6200
- +100 6 % $0.6100
- +300 8 % $0.6000
- +500 11 % $0.5800
- +1000 12 % $0.5700
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
GP2Y0A51SK0F Infrared Distance Sensor Previous

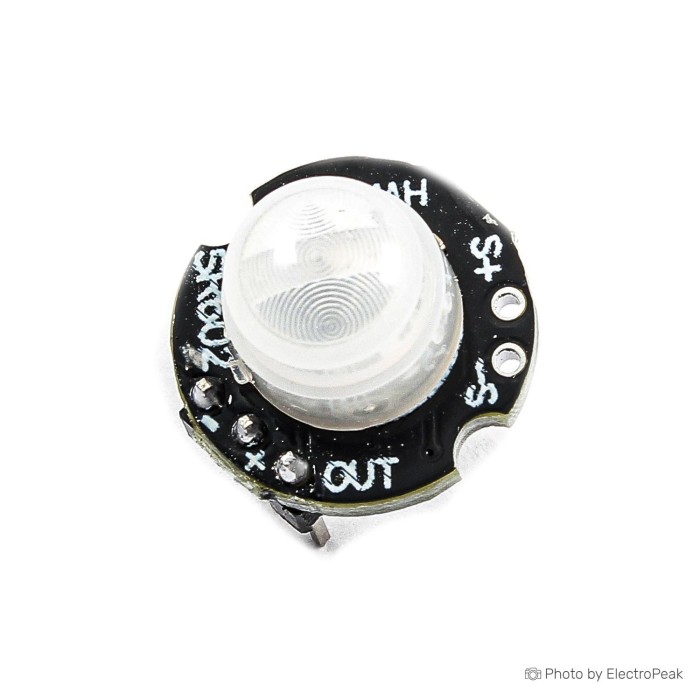

SR602 Infrared Motion Detection Sensor Module is a pyroelectric human infrared sensor module for motion detection. It features high sensitivity, fast response, and small static power consumption. The module has a lens and a compact design for simple installation. The output high level time is adjustable from 2.5 seconds to 1 hour, with a default setting of 2.5 seconds. The module supply voltage is 3.3V to 15V, and the sensing distance is up to about 5 meters.
Features of SR602 Infrared Motion Detection Sensor Module
- High sensitivity
- Fast response
- Low static power consumption
- Adjustable output time
- Built-in lens
- Compact size
Specifications of SR602 Infrared Motion Detection Sensor Module
- Model: SR602
- Board color: Black
- Pin count: Three-pin
- Input voltage: 3.3V to 15V
- Sleep current: About 20 microamperes
- Sensing distance: Up to about 5 meters
- Size: 15x15x20 mm
- Output high level time: 2.5 seconds to 1 hour
- Default output time: 2.5 seconds
- Output high level: H = 3.3V
- Output low level: L = 0V
- Blocking time: 2 seconds
- Repeatable trigger: Factory default
- Limit voltage: 2.8V to 18V
How to Use SR602 Infrared Motion Detection Sensor Module
- Connect the module within the 3.3V to 15V supply range.
- Install the module in a suitable position and avoid heat sources and direct sunlight.
- Adjust the output timing or sensitivity if needed by changing the chip resistor.
More Info
- The module can be set to work without a photosensitive element.
- The factory setting uses repeatable trigger mode.
| Interface Type | Digital |
|---|---|
| Operating Voltage (V) | 3.3 - 15 V |
| Operating Current (mA) | 20 |
| Dimensions (mm) | 15 x 15 x 20 mm |
| Output Type | Digital |
| Response Time | 2.5 seconds to 1 hour |
| Measurement Range | Up to 5 m |
| Push Button | No |
| Sensor Type | PIR |
| Measurement Principle | Infrared |
| Supply Current | uA |
| Chipset | SR602 |
